Unmanaged Industrial Single Pair Power over Ethernet Switch

RuggedNet® GLPoE/Si

c501a702ef05e90d163a1eeeb1633357 XL

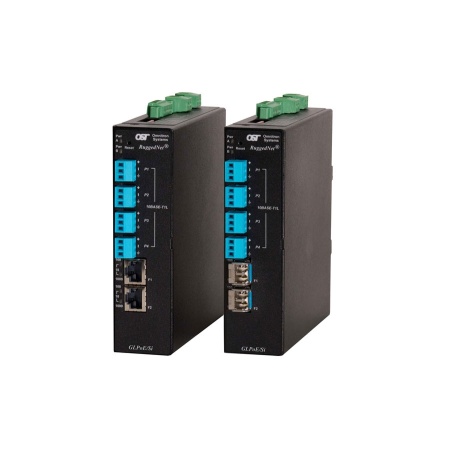

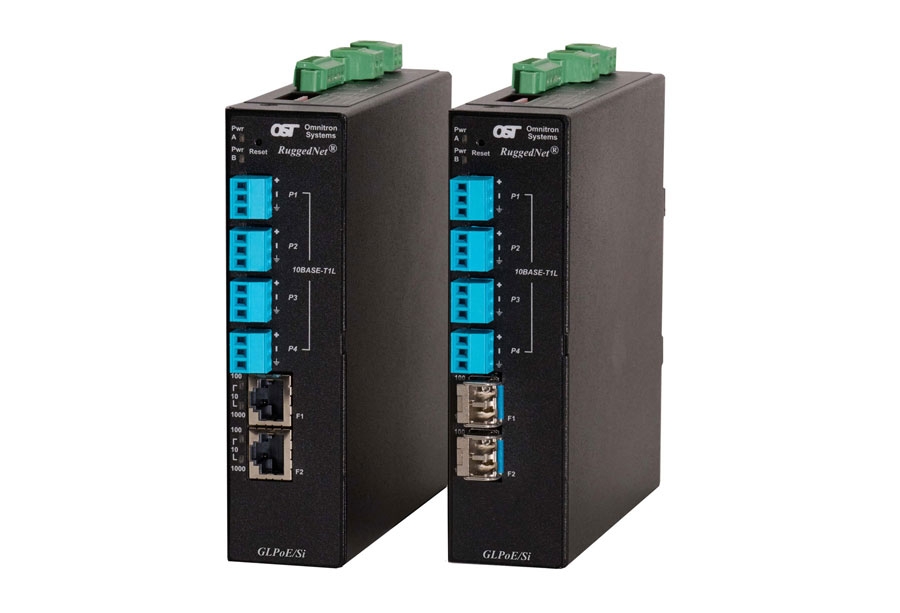

The RuggedNet GLPoE/Si is an unmanaged Industrial Single Pair Power over Ethernet (SPoE) switch that is IEEE 802.3cg compliant and features copper or fiber uplink ports and four single-pair 10BASE-T1L copper SPoE user ports. The Single Pair Power over Ethernet switch features four IEEE 802.3cg comp ...Read more

Features
  • Unmanaged Industrial IEEE 802.3cg Single-Pair PoE (SPoE) Switch
  • 4x IEEE 802.3cg Single-Pair PoE SPoE 30/58VDC user ports
  • 3-Pin SPE Terminal connector or IEC 63171-2 SPE connector
  • Two SFP or two 10/100/1000 RJ-45 uplink ports
  • Industrial (-40? to 75?C) operating temp
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

Warehouse Application

In this warehouse application SPoE cameras are installed around the perimeter of the warehouse. Each SPoE camera is connected to a RuggedNet GLPoE/Si Single Pair Power over Ethernet switch using up to 1000 meters of SPE cabling. No external AC power is required since the cameras are being powered by the RuggedNet switch over the SPE cable. The RuggedNet GLPoE/Si user ports provide 30 or 58 VDC to power class 10 - 15 cameras depending on the DIP-switch settings. The RuggedNet switch is connected to the Security Control Room using fiber optic cabling.

Building App GLPoE Si

The RuggedNet switch will require an external power source.



Dual Device Mode Application

This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location.

The example below depicts a scenario where a Manufacturing (green) network and the Quality Control (purple) network are sharing a single hub distribution location. Using the two uplinks and the Dual Device mode facilitates using a single switch driving both the Manufacturing and the Quality Control devices across SPE cabling while maintaining isolation between the networks. At the far end, the OmniConverter 10T/PLD modules are being powered by the RuggedNet switch are used to convert the T1L network back to Ethernet.

Dual Device App GLPoE Si

The RuggedNet switch, PLC, robot and computers will require an external power source.

  • Unmanaged Industrial IEEE 802.3cg Single-Pair Power over Ethernet (SPoE) Switch
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode prevents flooding of multicast traffic
  • Uplink redundancy
  • Four IEEE 802.3cg Single-Pair Power over Ethernet SPoE 30/58VDC user ports
  • Supports 3-Pin SPE Terminal connector or IEC 63171-2 SPE connector
  • Two SFP or two 10/100/1000 RJ-45 uplink ports
  • Supports 10/100/1000 and 1G copper SFP transceivers
  • Supports 100Mbps and 1000Mbps fiber SFPs
  • Dual DC power for redundancy
  • Wall, Rack and DIN-rail mountable
  • Industrial (-40? to 75?C) operating temperature
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Free 24/7/365 Technical Support

Step 1: Choose a Base Part Number (2935-x-4c-2Z)

Model NumberDescription
2935-0-4c-2Z 4 x 10BASE-T1L SPoE 30/58V + 2 x 100/1000 SFP Ports
2935-1-4c-2Z 4 x 10BASE-T1L SPoE 30/58V + 2 x 10/100/1000 RJ-45 Ports

Step 2: Choose a SPE Connector Type (2935-x-4c-2Z)

0 = 3-pin SPE Terminal Connector
2 = IEC 63171-2 SPE Connector

Power Option (2935-x-4c-2Z)

2 = Dual DC 2-Pin Terminal Power Connectors

Operating Temperature Range (2935-x-4c-2Z)

Z = Extended temperature (-40 to 75?C)



Accessories
Model NumberDescription Wall Mount Plate
 8260-3  Wall Mounting Plate
 8260-0  19" rack mount shelf

RuggedNet GLPoE/Si (Datasheet)

RuggedNet GLPoE/Si (User Manual)

The RuggedNet GLPoE/Si is an unmanaged Industrial Single Pair Power over Ethernet (SPoE) switch that is IEEE 802.3cg compliant and features copper or fiber uplink ports and four single-pair 10BASE-T1L copper SPoE user ports.

The Single Pair Power over Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPoE terminal ports or IEC 63171-2 SPoE ports and two 10/100/1000 RJ-45 or 100/1000 fiber SFP uplink ports.

The GLPoE/Si SPoE user ports detect and classify 30VDC class 10 - 12 and 58VDC class 13 -15 powered devices through DIP-switch selection.

The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.

Dual Device mode that enables the module to operate as two independent and isolated Ethernet switches. In Dual Device mode, the GLPoE/Si provides separate and independent data traffic paths between the two uplink ports and four user ports.

Directed Switch mode directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.

Redundant fiber or copper uplinks provide protection and restoration for critical applications. In the event of a failure on the primary uplink port, the switch will failover to the secondary uplink port. Once the failed uplink port has been restored, the switch will return to the primary uplink port.

For daisy-chain applications, the second uplink port can be used to cascade multiple switches.

The GLPoE/Si modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the switch for ease of identification and use.

The switch is available with Small Form Pluggable (SFP) transceiver receptacle ports or 10/100/1000 RJ-45 ports. The SFP ports support 10/100/1000BASE-T and 1000BASE-T copper transceivers and 100Mbps and 1000Mbps standard, CWDM and DWDM fiber transceivers in a variety of distances and fiber types.

The switch can be wall or rack mounted using a wall mount bracket (8260-3) and shelf (8260-0) or DIN-rail mounted using the included DIN-rail mounting clip. The switch is available with dual DC input power.
