OmniConverter® 10T/APS Single Pair Ethernet
OmniConverter® 10T/APS Single Pair Ethernet

10Mbps 10BASE-T to 10BASE-T1L PSE Converters



Features


  • Unmanaged 10BASE-T to 10BASE-T1L converter
  • 10BASE-TL1 supports 3-pin terminal or IEC 63171-2 connector
  • 10BASE-TL1 port provides up to 56 watts to edge/field devices
  • Interoperable with Class A, C, 3 and 4 edge/field devices with 1.0 V/2.4 V peak-to-peak signal amplitude options
  • Supports Automatic Link Negotiation
  • Supports Spur and Trunk connections
  • 2-Pin DC Power terminal connector
  • Integrated wall mount brackets
  • DIN-rail mount
  • Extended (-40 to +75ºC) operating temperature ranges
  • TAA, BAA and NDAA compliant
  • Made in the USA
  • Free 24/7/365 Technical Support with lifetime warranty




Description


The OmniConverter 10T/APS Single Pair Ethernet converters are 10BASE-T1L products that convert 10BASE-T Ethernet to 10BASE-T1L Ethernet. They are designed for digital instrumentation solutions used for industrial control processes. They utilize single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 200 or 1000 meters depending on the model number.

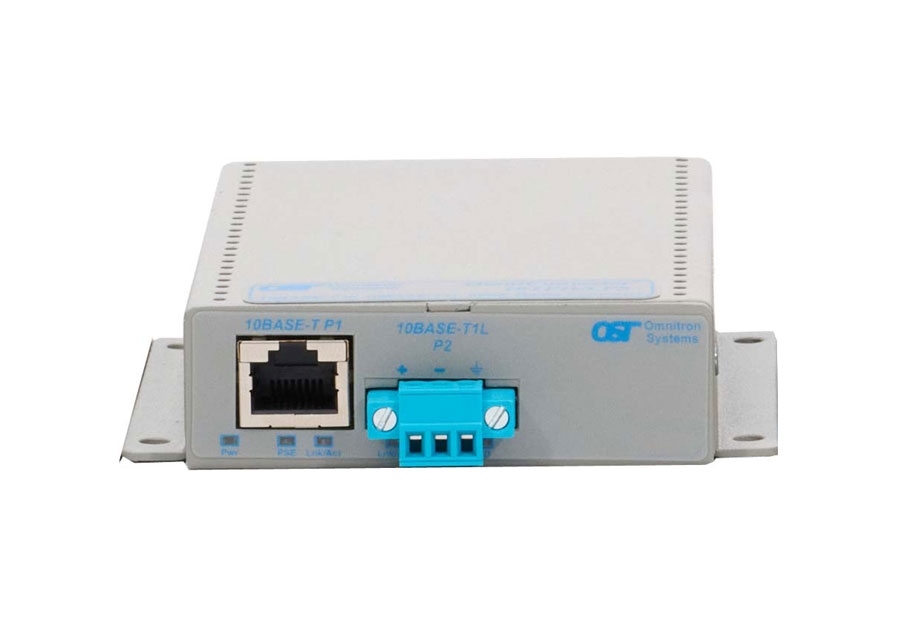

The 10T/APS converters feature one 10BASE-T1L 3-pin terminal or IEC 63171-2 port and one 10BASE-T RJ-45 port supporting 10Mbps full-duplex data rates.

Omnitron 10T/APS converters are interoperable with Ethernet-APL Class A, C, 3 and 4 edge/field devices and act as a Power Source capable of delivering up to 56 watts, depending on the model number. The 10T/APS models 2022 and 2024 support 1.0V peak-to-peak signal amplitude voltage when connecting to Class A and C edge/field devices. Whereas the 2025 and 2027 models use Automatic Link negotiation to transmit 1.0V or 2.4V peak-to-peak signal amplitude voltage to the field /edge devices.

The following are the product configurations.

Product NameBase Model #Port 1Port 2
10T/APS 2022 10BASE-T T1L/PSE 0.5W Class A (1.0V)
10T/APS 2024 10BASE-T T1L/PSE 1.0W Class C (1.0V)
10T/APS 2025 10BASE-T T1L/PSE 36W Class 3 (1.0V/2.4V)
10T/APS 2027 10BASE-T T1L/PSE 56W Class 4 (1.0V/2.4V)



The 10T/APS converters are interoperable with Ethernet-APL Field Devices. The converters can connect to a spur or trunk segment.. A Spur segment has a maximum distance of 200 meters and data signal amplitude of 1.0 volt peak-to-peak. A Trunk segment has a maximum distance of 1000 meters and data signal amplitude of 2.4 volts peak-to-peak.

They are available as standalone units with integrated mounting brackets. They can be DIN-rail mounted using the optional DIN-rail mounting clip kit (8252-0). Models come with a 2-pin DC power terminal connector.





Examples


Industrial Process Automation

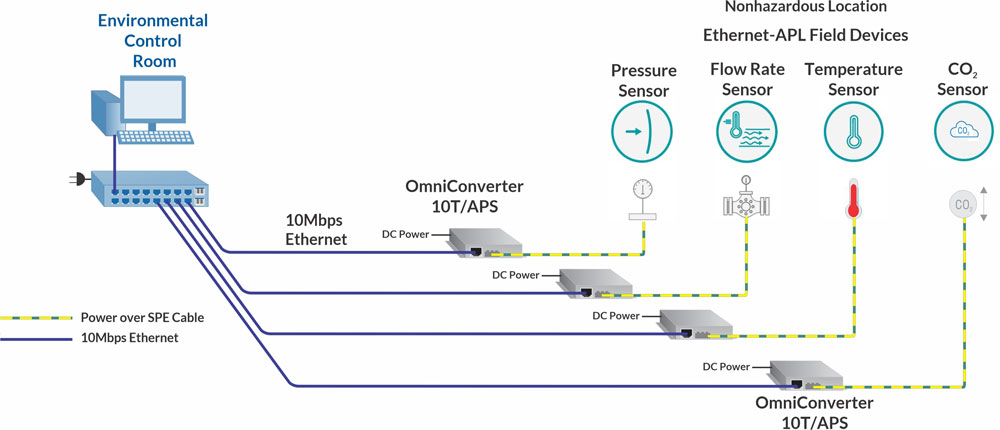

In this example, the OmniConverter 10T/APS converters are extending a copper connection from an Ethernet switch in the Environmental Control Room to industrial processing sensors that are installed in a nonhazardous location. The 10T/ APS converters extend the Spur connections up to 200 meters over SPE cabling to each sensors.

10T T1L SPoE Building Automation App

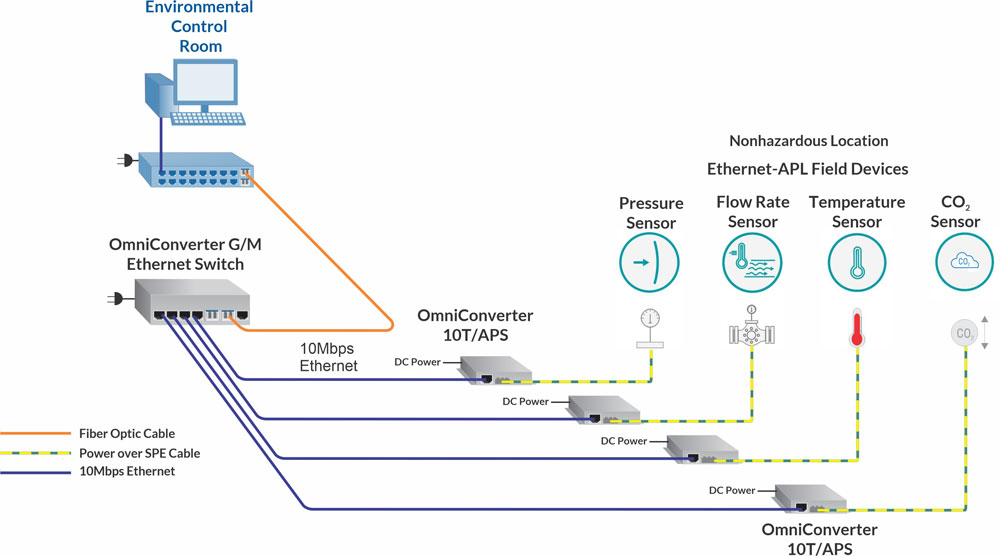

For applications where the industrial processing sensors exceed the copper Ethernet distance from the Environmental Control Room, an OmniConverter G/M Ethernet switch can be used to extend a fiber connection to within the copper distance of the sensors. The OmniConverter G/M extends a 10Mbps Ethernet copper connection to the 10T/APS, where the 10T/APS converters connect to the industrial processing sensors using SPE cabling. Depending on the model, the distance can be up to 1000 meters.

10T T1L PD PSE App





Specifications


Description

10T/APS

10BASE-T to 10BASE-T1L APS PSE
Base Model Number 2022 2024 2025 2027
Standard Compliances

IEEE 802.3,

10BASE-T1L compliant
Regulatory Compliances (Pending)

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             CUL CSA C22.2 No. 60950,

             EN 60950-1:2006

             CE Mark,

             UKCA

EMI:      FCC 47CFR, Part 15 Class A

             AS/NZS 3548, AS/NZS 4417.1 and AS/NZS 4417.2

             ICES-003 Issue 3

             EN 55032/CISPR 22 and EN55035

             EN61000-3-2

             VCCI V3/2001.04 (CISPR 22A:1997, Class A)

EMC:    IEC/EN61000-4-2, IEC/EN61000-4-3

             IEC/EN61000-4-4, IEC/EN61000-4-5

             IEC/EN61000-4-6, IEC/EN61000-4-8

             IEC/EN61000-4-11

ACT:     TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Frame Size Up to 1518 bytes
PSE Mode

9.6 to 15 VDC for

Class A edge/field devices

11.61 to 15 VDC for

Class C edge/field devices

46 to 50 VDC for

Class 3 edge/field devices

46 to 50 VDC for

Class 4 edge/field devices
Port Types

10BASE-T: RJ-45

10BASE-T1L:

3-Pin Terminal or

IEC 63171 Connector

Class A:

1.0 V peak-to-peak; 0.5 W

10BASE-T: RJ-45 PoE+/PD

10BASE-T1L:

3-Pin Terminal or

IEC 63171 Connector

Class C:

1.0 V peak-to-peak; 1.0 W

10BASE-T: RJ-45 PoE+/PSE

10BASE-T1L:

3-Pin Terminal or

IEC 63171 Connector

Class 3:

1.0/2.4 V peak-to-peak, 36 W

10BASE-T: RJ-45

10BASE-T1L:

3-Pin Terminal or

IEC 63171 Connector

Class 4:

1.0/2.4 V peak-to-peak, 56 W
Cable Types

10BASE-T: Ethernet, EIA/TIA 568A/B, Cat 3 or better

10BASE-T1L: Single-Pair Ethernet (SPE) cable, IEC 61156-13 (fixed) or IEC 61156-14 (flexible) 18AWG cable or better

DC Power Requirements

(with DC Terminals)

+9 to +15VDC;

0.222A @ 12VDC

2 Pin Terminal

+11.61 to +15VDC;

0.261A @ 12VDC

2 Pin Terminal

+46 to +50VDC;

1.359A @ 48VDC

2 Pin Terminal

+46 to +50VDC;

2.109A @ 48VDC

2 Pin Terminal

Dimensions

(W x D x H)

3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight

Module Only: 1.0 lbs. (453.6 grams)

Module w/ Adapter: 1.9 lbs. (852.6 grams)
Operating Temperature

Extended: -40 to 75°C

Storage: -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hours)

1,642,000

1,637,000

1,637,000

1,631,000
Warranty Lifetime warranty with 24/7/365 free Technical Support

Hazardous Area Use Disclaimer:

This product is not certified for use in hazardous (classified) locations, including Zone 0, Zone 1, or Zone 2 as defined by IEC 60079-10-1 or equivalent national standards. It is intended for installation in non-hazardous (safe) areas only.

The product supports interoperability with Ethernet-APL networks and devices, including those installed in hazardous zones, provided that all connections are made through certified intrinsically safe interfaces as part of a compliant system architecture.

When connecting to devices located in hazardous areas, appropriate energy-limiting devices, field switches, or barriers must be used to ensure compliance with all applicable safety standards.





Ordering


Step 1: Choose a Base Part Number (202x-c0-19Z)

OmniConverter 10T/APS
Model NumberDescription
2022-c0-19Z

10T/APS - 1 x 10BASE-T RJ-45 and 1 x 10BASE-T1L APL, TL1/PSE 1.0V, Class A, Direct DC input, Extended temperature (-40 to 75°C)
2024-c0-19Z

10T/APS - 1 x 10BASE-T RJ-45 and 1 x 10BASE-T1L APL, TL1/PSE 1.0V, Class C, Direct DC input, Extended temperature (-40 to 75°C)
2025-c0-19Z

10T/APS - 1 x 10BASE-T RJ-45 and 1 x 10BASE-T1L APL, TL1/PSE 1.0/2.4V, Class 3, Direct DC input, Extended temperature (-40 to 75°C)
2027-c0-19Z

10T/APS - 1 x 10BASE-T RJ-45 and 1 x 10BASE-T1L APL, TL1/PSE 1.0/2.4V, Class 4, Direct DC input, Extended temperature (-40 to 75°C)

Step 2: Choose a SPE Connector Type (202x-c0-19Z)

0 = 3-pin Terminal
2 = IEC 63171-2 SPE jack

Mounting Option (202x-c0-1pt)

1 = With integrated mounting brackets

Power Option (202x-c0-19Z)

9 = Direct DC input with 2-Pin Terminal Connector, no AC/DC Power Adapter

Operating Temperature Option (202x-c0-19Z)

Z = Extended temperature (-40 to 75°C)
