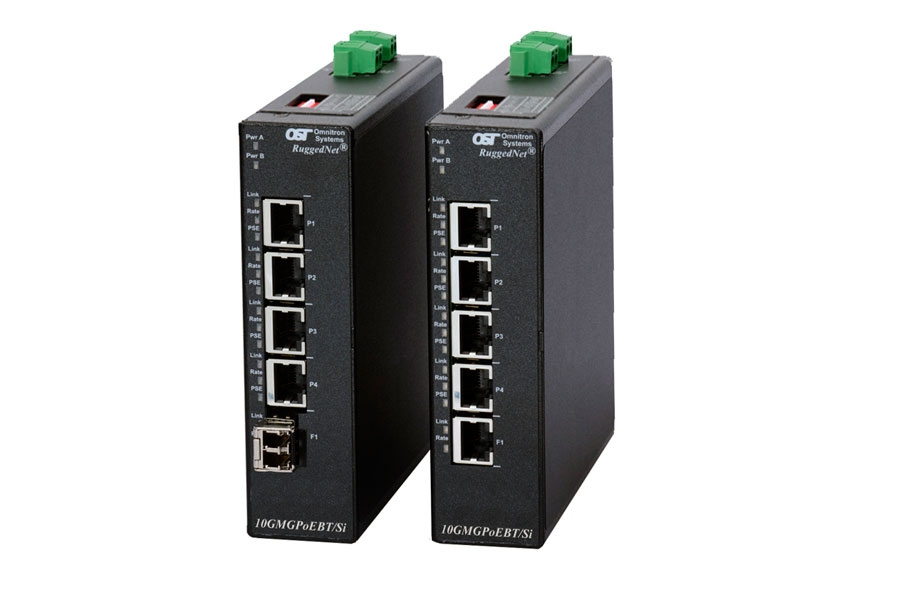

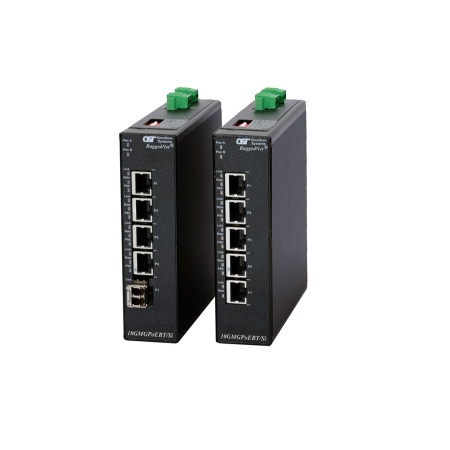

Unmanaged Industrial Multi-Gigabit 100M, 1G, 2.5G, 5G, 10G PoE Ethernet Switch

RuggedNet® 10GMGPoE+/Si and 10GMGPoEBT/Si

1ba6f013b03d3119f460bad3db0fbe5d XL
The RuggedNet 10GMGPoE+/Si and 10GMGPoEBT/Si are unmanaged industrial multi-gigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink port and two multi-gigabit/multi-rate RJ-45 and two 10/100/1000 PoE RJ-45 user ports. They support PoE, PoE+ and PoEBT up to 100 ...Read more

Features
  • Unmanaged Industrial 10G multi-gigabit/multi-rate PoE Ethernet Switch
  • IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (60W and 100W)
  • 1/10G SFP/SFP+ standard/CWDM/DWDM fiber transceiver uplink port
  • Industrial (-40 to 75? C) operating temp
  • Multi-gigabit/multi-rate ports supports speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

Security and Wireless

In this application example, outdoor IP surveillance cameras and Wi-Fi 6/6E Access Points are installed throughout a large facility. An iConverter® XM5 aggregation fiber switch is used to distribute a fiber link from a control room to RuggedNet switches with a fiber SFP port.

The RuggedNet 10GMGPoEBT/Si provides up to 100W of Power-over-Ethernet (PoE) to an IP camera and Wireless Access Point at each location, each of which can be located up to 100 meters from the switches.

When less power is required the RuggedNet 10GMGPoE+/Si can be used to deliver 30 watt of power per port.

The camera and access point have full bandwidth capability utilizing the 10G fiber uplink port on each 10GMGPoEBT/Si switch.

Ceiling App 10GMGPoE Si new

Small Cell

Small cell devices are increasing their demand on both power and bandwidth requirements. Speeds of 10Gbps and 100W is common with today?s small cell devices.

In this application example, high-speed small cell devices requiring up to 10Gbps bandwidth are deployed inside several buildings. An iConverter® XM5 aggregation fiber switch is used to distribute a fiber link to each RuggedNet switch.

The RuggedNet 10GMGPoEBT/Si switches provide up to 100 watts and speeds up to 10Gbps on the RJ-45 user ports.

Small Cell App 10GMGPoE Si

  • Unmanaged Industrial 10G multi-gigabit/multi-rate PoE Ethernet Switch
  • Models support IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (60W and 100W)
  • Directed Switch mode prevents flooding of multicast video traffic
  • Configurable PoE power reset
  • One SFP/SFP+ transceiver uplink port or multi-gigabit/multi-rate copper port
  • 1/10G SFP/SFP+ standard/CWDM/DWDM fiber transceiver uplink port
  • Uplink port supports copper and fiber SFP/SFP+ transceivers
  • Multi-gigabit/multi-rate ports supports speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps
  • Two multi-gigabit/multi-rate RJ-45 PoE and two 10/100/1000 RJ-45 PoE user ports
  • Dual DC power for redundancy
  • Wall, Rack and DIN-rail mountable
  • Fan-less design for long life
  • Industrial (-40 to 75? C) operating temperature
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Free 24/7/365 Technical Support
RuggedNet 10GMGPoE+/Si Models
Model NumberDescription
9661-0-14-2Z 10GMGPoE+/Si - 1 x SFP+ + 2 x 100/1G/2.5G/5G/10G RJ-45 30W per port + 2 x 10/100/1000 RJ-45 30W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75?C
9661-1-14-2Z 10GMGPoE+/Si - 1 x 100/1G/2.5G/5G/10G RJ-45 + 2 x 100/1G/2.5G/5G/10G RJ-45 30W per port + 2 x 10/100/1000 RJ-45 30W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75?C
 Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.



RuggedNet 10GMGPoEBT/Si Models
Model NumberDescription
9662-0-14-2Z 10GMGPoEBT/Si - 1 x SFP+ + 2 x 100/1G/2.5G/5G/10G RJ-45 60W per port + 2 x 10/100/1000 RJ-45 60W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75?C
9662-1-14-2Z 10GMGPoEBT/Si - 1 x 100/1G/2.5G/5G/10G RJ-45 + 2 x 100/1G/2.5G/5G/10G RJ-45 60W per port + 2 x 10/100/1000 RJ-45 60W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75?C
9663-0-14-2Z 10GMGPoEBT/Si - 1 x SFP+ + 2 x 100/1G/2.5G/5G/10G RJ-45 100W per port + 2 x 10/100/1000 RJ-45 100W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75?C
9663-1-14-2Z 10GMGPoEBT/Si - 1 x 100/1G/2.5G/5G/10G RJ-45 + 2 x 100/1G/2.5G/5G/10G RJ-45 100W per port + 2 x 10/100/1000 RJ-45 100W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75?C
 Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.



Accessories
Model NumberDescription Wall Mount Plate
 8260-3  Wall Mounting Plate
 8260-0  19" rack mount shelf

RuggedNet 10GMGPoE+/Si and 10GMGPoEBT/Si (Datasheet)

RuggedNet 10GMGPoE+/Si (User Manual)

RuggedNet 10GMGPoEBT/Si (User Manual)



Wall Mount Plate (User Manual)

The RuggedNet 10GMGPoE+/Si and 10GMGPoEBT/Si are unmanaged industrial multi-gigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink port and two multi-gigabit/multi-rate RJ-45 and two 10/100/1000 PoE RJ-45 user ports. They support PoE, PoE+ and PoEBT up to 100 watts depending on the model.

The RJ-45 user ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps, supporting frame sizes up to 10,240 bytes.

The 10GMGPoE+/Si supports IEEE 802.3at (15 and 30W) and the 10GMGPoEBT/Si supports IEEE 802.3bt (60 and 100W) per user port depending on the model.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

The modules support a PoE power reset function that enables the attached PD device, such as a camera or access point, to be re-initialized remotely, eliminating the need for costly truck rolls to remote PD sites. When a problem with a PD is detected, the fiber port on the module can be disconnected, triggering the PoE power reset function.

The switches feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 100M/1G/2.5G/5G/10GBASE-T multi-gigabit copper transceivers and 1G and 10G multimode or singlemode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.

The RuggedNet PoE switches are well suited for the power and bandwidth demands imposed by IP cameras, access points and small cell devices on the market today. RuggedNet 10G switches provide high-speed network distance extension with fiber optic cabling, and function as PoE injectors.

All models can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with dual DC input power.

Description

RuggedNet® 10GMGPoE+/Si

Unmanaged Industrial IEEE 802.3at 10Gigabit Multi-Gigabit/Multi-Rate Ethernet Switch

RuggedNet® 10GMGPoEBT/Si

Unmanaged Industrial IEEE 802.3bt 10Gigabit Multi-Gigabit/Multi-Rate Ethernet Switch
Standard Compliances

IEEE 802.3, 802.3bz,

IEEE 802.3af (15.4 watts max)

IEEE 802.3at (30 watts max)

IEEE 802.3, 802.3bz, IEEE 802.3af (15.4 watts max),

IEEE 802.3at (30 watts max)

IEEE 802.3bt (60 watts or 100 watts max)
Regulatory Compliances
(Pending)

Safety*:  UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV,

             IEC 61000-4-6 CS: Signal: 10 V,

             IEC 61000-4-8 ( Magnetic Field), 30A/m,

             IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP20 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
PoE Modes IEEE Alternate A (Alt A)
Frame Size Up to 10,240 bytes
Port Types

Copper:       100/1000BASE-T, 2.5GBASE-T/5GBASE-T/10GBASE-T (RJ-45)

                    10/100/1000BASE-T (RJ-45)

SFP/SFP+:  10GBASE-X Fiber Transceivers, 10GBASE-T Copper Transceivers

                    1000BASE-X Fiber Transceivers, 1000BASE-T Copper Transceivers

                    10/100/1000BASE-T SGMII Copper Transceivers

                    100/1000/2.5G/5G/10GBASE-T Multi-rate Copper Transceivers
Cable Types

Copper: Twisted-pair cable up to 100 meters

              10BASE-T: 4-pair UTP Cat 3, 4, 5, 5e, 6, 6A

              100BASE-TX: 4-pair UTP Cat 5, 5e, 6, 6A

              1G/2.5G: 4-pair UTP Cat 5e, 6, 6A, 7

              5G: 4-pair UTP Cat 6, 6A, 7

              10G: 4-pair UTP Cat 6A, 7

Fiber:    Multimode: 50/125, 62.5/125?m

              Single-mode: 9/125?m
DC Power Requirements
(Models with DC Terminals)

+46 to +57VDC;

2.34A @ 56VDC

2 Pin Terminal (isolated)

60 watt Models:

+46 to +57VDC;

4.49A @ 56VDC

2 Pin Terminal (isolated)

100 watt Models:

+46 to +57VDC;

7.38A @ 56VDC

2 Pin Terminal (isolated)
Dimensions
(W x D x H)		 1.5? x 5.2? x 5.5? (38.1 mm x 132.1 mm x 139.7 mm)
Weight

1.5 lbs. (680 grams)
Operating Temperature
(See Temperature Derating Table)

Extended: -40 to 75?C

Storage: -40 to 80?C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs)

260,000
Warranty 5 year product warranty with 24/7/365 free Technical Support



Power / Voltage Requirements and Specifications

DescriptionIEEE 802.3af 15W PoEIEEE 802.3at 30W PoE+

IEEE 802.3.bt 60W PoE

(Type 3)

IEEE 802.3.bt 60W PoE

(Type 3)

Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC 51.0 to 57.0 VDC 53.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC 50.0 to 56.0 VDC 52.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts 60 watts 100 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC 42.5 VDC 41.1 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts 51 watts 71 watts
* at 100 meters using Cat5
