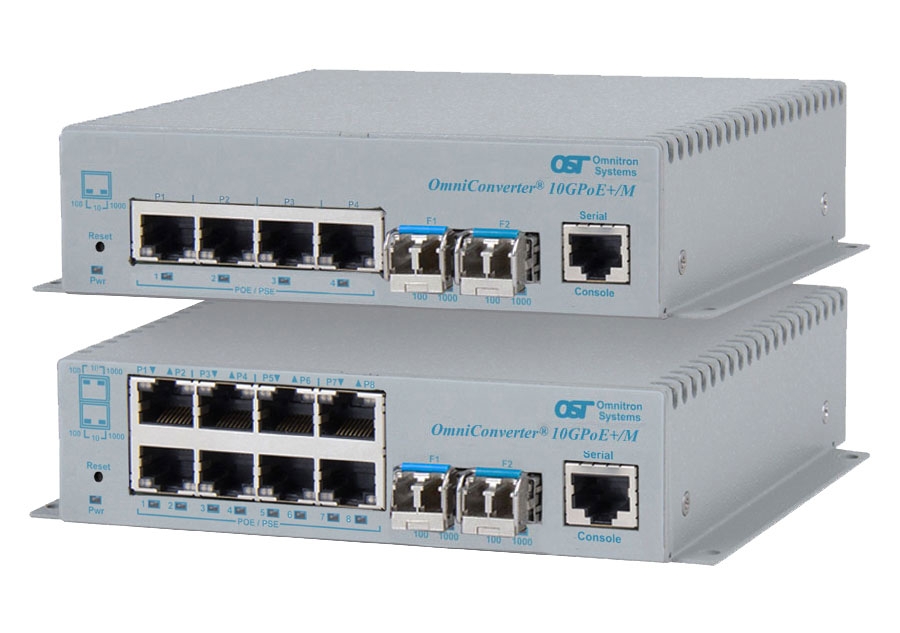

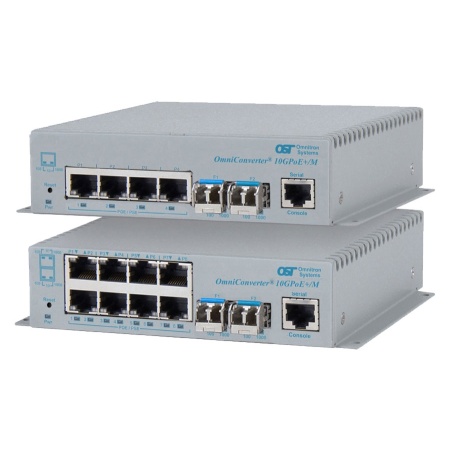

6 and 10 Port Managed 10G PoE Switch

OmniConverter® 10GPoE+/M

f2db05517411d6eb0e1fc32654b32d49 XL
6 and 10 Port Managed 10G PoE Switch Overview   The OmniConverter 10GPoE+/M is a compact managed PoE and PoE+ Ethernet switch that feature two 1/10G uplink ports and four or eight 10/100/1000 PoE/PoE+ RJ-45 copper user ports. The OmniConverter 10GPoE+/M is a Layer 2 Ethernet switch that forw ...Read more

Features
  • Managed 1/10G PoE/PoE+Ethernet Switch
  • Modbus Industrial Protocol for device management and monitoring
  • Supports IPv4 and IPv6
  • Management via Web, Telnet, SSH, SNMPv1/v2c/v3 and serial interfaces
  • SNMP management via Omnitron?s NetOutlook? management software, or third-party SNMP software
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

6 and 10 Port Managed 10G PoE Switch Applications



Dual Device Mode Application

This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location.

The example below depicts a scenario where a surveillance security (green) network and a Wi-Fi (purple) network are sharing a single hub distribution location. Using the two uplinks and the Dual Switch mode facilitates using a single PoE switch driving both the Cameras and the Wi-Fi Access Points while maintaining isolation between the networks.

Dual Media Converter Mode 9580 10gpoe m

Daisy-Chain and Ring Topology Network Application

This example demonstrates the daisy chaining and ring capabilities of the OmniConverter. In this application each OmniConverter switch connects to its neighboring switches via its uplink ports eventually closing the ring.

Using this network architecture combined with ring protection protocols such as Media Redundancy Protocol (MRP) or Rapid Spanning Tree Protocol (RSTP) facilitates a highly resilient network required in mission critical applications.

Dasiy Chain Application 9580 10gpoe m

PoE Power Multi-Day Scheduler

The web management allows you to automatically power on/off connected PD devices at pre-defined times of the day, which conserves energy and increases network security.  For example, network managers can schedule to turn off power to their VoIP phones or WiFi Devices after business hours preventing unauthorized access and conserving energy, while having continuous PoE power to their Security Surveillance cameras 24 hours a day.

poe-scheduling

6 and 10 Port Managed 10G PoE Switch Features



  • Managed 1/10G PoE/PoE+Ethernet Switch
  • Modbus Industrial Protocol for device management and monitoring
  • Supports IPv4 and IPv6
  • IEEE 802.1x, RADIUS, TACACS+ and ACL
  • Email Notification
  • Rapid and Multiple Spanning Tree Protocol
  • Media Redundancy Protocol (MRP)
  • IEEE 802.1ax LAG and LACP; Act/Act and Act/Standby
  • IEEE 802.1Q VLAN tagging and IEEE 802.1ad Q-in-Q
  • Broadcast / Multicast / Unicast Storm Prevention
  • DHCP Relay Option 82, DHCPv6 and DHCPv6 Relay
  • IPv4 IGMP and IPv6 MLD snooping
  • Rate Limiting, Queue prioritization and Class of Service
  • IEEE 802.1ab Link Layer Discovery Protocol
  • Static MAC configuration and blocking of unknown Unicast/Multicast addresses
  • Heartbeat signal to verify connectivity to the PD and Configurable PoE Power Reset
  • PoE power management with LLDP MED and MDI TLV, and PoE Power Multi-Day Scheduler
  • Management via Web, Telnet, SSH, SNMPv1/v2c/v3 and serial interfaces
  • Easy to use Hierarchical Command Line Interface
  • SNMP management via Omnitron?s NetOutlook® management software, or third-party SNMP software
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode prevents flooding of multicast video traffic
  • Free 24/7/365 Technical Support

ADDITIONAL FEATURES

  • Two 1/10G SFP/SFP+ transceiver uplink ports
  • Supports copper and fiber SFP transceivers
  • Supports 10M, 100M, 1G and 10Gbps copper SFP/SFP+ transceivers
  • Four or eight 10/100/1000 RJ-45 PoE/PoE+user ports
  • AC to DC Power Adapter or 2-Pin DC terminal
  • Wall, Rack and DIN-rail mountable
  • Fan-less design for long life
  • Commercial (0? to 50?C), wide (-40? to 60?C) and extended (-40? to 75?C) operating temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA

How to Order Your 6 and 10 Port Managed 10G PoE Switch

Complete the ordering form and we will expedite a quote through one of our approved distributors.



Step 1: Choose the Base Part Number (xxxx-x-xx-pt)

OmniConverter 10GPoE+/M Models
Model NumberDescription
9580-0-24-pt OmniConverter 10GPoE+/M 2 x SFP/SFP+ uplink port and 4 x RJ-45 PoE/PoE+ user ports
9580-0-28-pt OmniConverter 10GPoE+/M 2 x SFP/SFP+ uplink port and 8 x RJ-45 PoE/PoE+ user ports
 Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.

Step 2: Choose the Power Option (xxxx-x-xx-pt)

 1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord
 2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord
 8 = External AC/DC Adapter, 100 - 240 VAC included, PS JET/PSE Certified, with Japanese Power Cord
 9 = Direct DC 2 pin terminal connector, no AC/DC power adapter

Step 3: Choose the Operating Temperature Range Option (xxxx-x-xx-pt)

 <leave blank> = Commercial temperature (0 to 50?C)
 W = Wide temperature (-40 to 60?C)
 Z = Extended temperature (-40 to 75?C) - not available for models with AC/DC Power Adapters



Accessories


Model NumberDescription
8251-0 DIN-Rail Mounting Clip
8260-0 19" rack mount shelf

OmniConverter 10GPoE+/M (Datasheet)

OmniConverter 10GPoE+/M (Quick-Start)



OmniConverter Command Line Interface (User Manual)

OmniConverter Web Interface (User Manual)

OmniConverter / RuggedNet 2.5 Hierarchical CLI (User Manual)

6 and 10 Port Managed 10G PoE Switch Overview



The OmniConverter 10GPoE+/M is a compact managed PoE and PoE+ Ethernet switch that feature two 1/10G uplink ports and four or eight 10/100/1000 PoE/PoE+ RJ-45 copper user ports.

The OmniConverter 10GPoE+/M is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

The switches support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications.

The switches support Dual Device mode that enables the 10GPoE+/M to operate as two independent and isolated Ethernet switches.

The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.

The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard, CWDM and DWDM wavelengths.

The switches feature a PoE Power Reset function that enables the user to remotely power-cycle and reset each PD, such as a camera or access point. They also feature a configurable Heartbeat Reset function that automatically pings the attached PDs and automatically power cycles and resets the PDs when detecting a heartbeat loss. The Power Reset and the Heartbeat Reset functions save time and expense by eliminating the need to dispatch manpower to remote network sites.

All models can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector

6 and 10 Port Managed 10G PoE Switch: Detailed Product Specifications

Description

OmniConverter® 10GPoE+/M

10/100/1000BASE-T with 1/10G Uplink Ports

Managed PoE+ 10Gigabit Ethernet Switch
Standard Compliances

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP

RFC 5424, RFC 4541, RFC 2710

IEC 624339-2,

SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x

IEEE 802.3af (15.40 watts), IEEE 802.3at (30 watts)
Regulatory Compliances
(*Pending)

Safety*: UL 62368-1, UL 60950-1,

              IEC 62368-1, IEC 60950-1,

              EN 62368-1, EN 60950-1,

              CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

              CE Mark, UKCA

EMC:     EN 55032/24 CE Emissions/Immunity,

              IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:      CISPR 32,

              FCC 47 Part 15 Subpart B Class A

EMS:     IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

              IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

              IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

              IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

              IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

              IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

              IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 (Magnetic Field) 30A/m,

              IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Management

IPv4 and IPv6 address

Web, Telnet, SSH, SNMPv1/v2c/v3

In-Band management via Ethernet port

Out-of-band management via serial port
PoE Mode IEEE Alternate A (Alt A)
Frame Size Up to 10,240 bytes
Port Types

Copper:       10/100/1000BASE-T (RJ-45)

SFP/SFP+:  10GBASE-X Fiber Transceivers

                    10GBASE-T Copper Transceivers

                    1000BASE-X Fiber Transceivers

                    1000BASE-T Copper Transceivers

                    10/100/1000BASE-T SGMII Copper Transceivers

Serial:          RS-232 (RJ-45)
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:     Multimode: 50/125, 62.5/125?m

              Single-mode: 9/125?m

Serial:    Category 3 and higher
AC Power Requirements
(Models with AC/DC Adapters)

100 - 240VAC/50 - 60Hz

3.5A max at 115VAC

2.5A max at 230VAC

Supplied adapter provides 250W
DC Power Requirements
(Models with DC Terminals)

4 RJ-45 Ports:

+46 to +57VDC;

2.33A @ 56VDC

2 Pin Terminal (isolated)

8 RJ-45 Ports:

+46 to +57VDC;

4.49A @ 56VDC

2 Pin Terminal (isolated)
Dimensions
(W x D x H)		 6.28? x 5.2? x 1.5? (159.5 mm x 132.1 mm x 38.1 mm)
Weight

4 RJ-45 Ports:

Module Only: 1.5 lbs. (677 grams)

Module with AC/DC Adapter: 3.6 lbs. (1645 grams)

8 RJ-45 Ports:

Module Only: 1.7 lbs. (755 grams)

Module with AC/DC Adapter: 3.8 lbs. (1723 grams)
Operating Temperature
(See Temperature Derating Table)		 Commercial: 0 to 50?C
Wide: -40 to 60?C (-20?C AC cold start)
Extended: -40 to 75?C - not available for models with AC/DC Adapters
Storage: -40 to 80?C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) Module Only: 274,000
AC/DC Adapter: 100,000
Warranty 5 year product warranty with 24/7/365 free Technical Support
2 year AC power adapter warranty



Power / Voltage Requirements and Specifications

DescriptionIEEE 802.3af PoEIEEE 802.3at PoE+
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts
* at 100 meters using Cat5



AC/DC Adapter Temperature Derating - Total Available Wattage to RJ-45 Ports
Model RJ-45 Ports Watts Required 40?C 50?C 60?C
10GPoE+/M 4 120 watts Full Power Full Power 115 watts
8 240 watts Full Power 175 watts 115 watts
The AC/DC Adapter Temperature derating table is not applicable to models with DC Terminal (see Ordering table for Direct DC -9 option). The DC Terminal models will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table.
