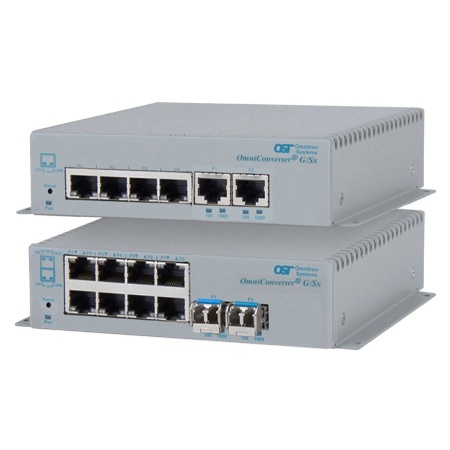

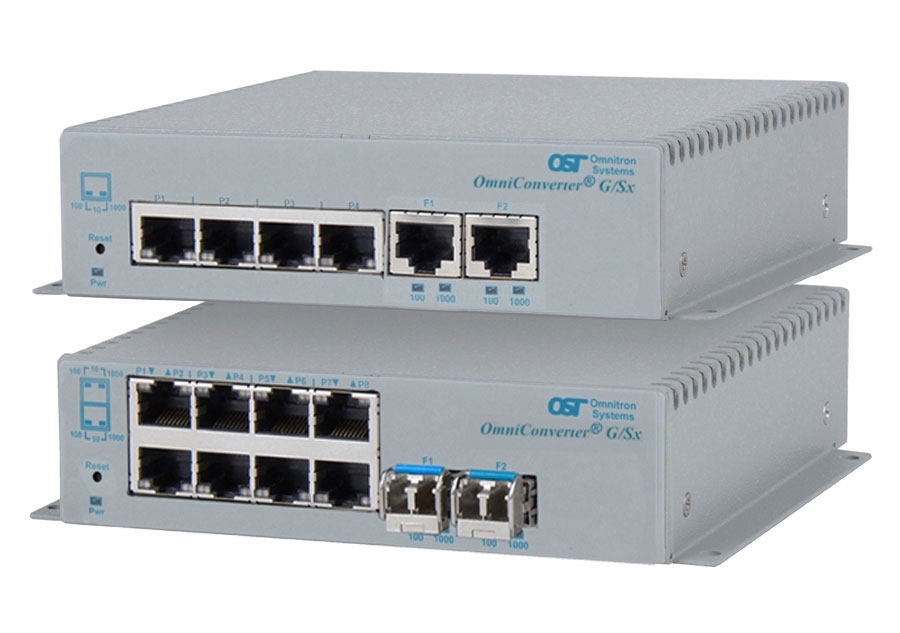

Unmanaged 6 and 10 Port Gigabit Ethernet Switch

OmniConverter® G/Sx

4ccbd8f9cf85039af7a26ff5d030e033 XL
The OmniConverter G/Sx is an unmanaged compact gigabit Ethernet switch that features copper or fiber uplink ports and four or eight 10/100/1000 RJ-45 copper user ports. The OmniConverter G/Sx enables network distance extension with fiber cabling. The OmniConverter G/Sx is a standard Layer 2 Etherne ...Read more

Features
  • Unmanaged 6 and 10 Port Gigabit Ethernet Switch
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode prevents flooding of multicast video traffic
  • AC to DC Power Adapter or 2-Pin DC terminal
  • ST, SC and LC fixed fiber ports or standard, CWDM or DWDM Gigabit SFP transceivers
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

Dual Device Mode Application

This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location.

The example below depicts a scenario where the Administration (green) network and the Engineering (purple) network are sharing a single hub distribution location. Using the two uplinks and the Dual Switch mode facilitates using a single switch driving both the Administration and the Engineering workstations while maintaining isolation between the networks.
Dual Device Mode 2860 g sx

Daisy Chain Application

This example demonstrates the daisy chain capabilities of the OmniConverter switches. In this application each OmniConverter switch connects to its neighboring switches via its uplink ports. The daisy chain can continue to additional switches using this method of connectivity.

In this application, two locations are connected using the OmniConverter switches providing connectivity between the workstations and the router.

Daisy Chain Application 2680 gsx

  • Unmanaged 6 and 10 Port Gigabit Ethernet Switch
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode prevents flooding of multicast video traffic
  • Uplink redundancy on models with two uplink ports
  • Two 10/100/1000 copper or 100M*/1G fiber uplink ports
  • Four or eight 10/100/1000 copper user ports
  • ST, SC and LC fixed fiber ports or standard, CWDM or DWDM Gigabit SFP transceivers
  • AC to DC Power Adapter or 2-Pin DC terminal
  • Wall, Rack and DIN-rail mountable
  • Fan-less design for long life
  • Commercial (0? to 50?C), wide (-40? to 60?C) and extended (-40? to 75?C) operating temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Free 24/7/365 Technical Support

*100Mbps supported with 100M SGMII SFP Transceivers

 Step 1: Choose the Base Part Number (xxxx-x-xy-pt)

OmniConverter G/Sx Models
Fiber
Type		DistanceConnector TypeTx/Rx
Lambda
(nm)		Min. Tx
Power
(dBm)		Max. Tx
Power
(dBm)		Min. Rx
Power
(dBm)		Max. Rx
Power
(dBm)		Min
Atten
(dB)		Link
Budget
(dB)
STSCLCSFPRJ-45
MM/DF 220/550m1 2860-0-1y-pt 2862-0-1y-pt 2866-0-1y-pt - - 850/850 -10 -4 -17 -3 - 7
MM/DF (x2) 220/550m1 - - 2866-0-2y-pt - - 850/850 -10 -4 -17 -3 - 7
MM/DF 2km - 2862-6-1y-pt - - - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM/DF 12km 2861-1-1y-pt 2863-1-1y-pt 2867-1-1y-pt - - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM/DF (x2) 12km - - 2867-1-2y-pt - - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM/DF 34km - 2863-2-1y-pt - - - 1310/1310 -5 0 -23 -3 3 18
SM/DF 80km - 2863-3-1y-pt - - - 1550/1550 -5 0 -23 -3 3 18
SM/DF 110km - 2863-4-1y-pt - - - 1550/1550 0 5 -24 -3 8 24
SM/DF 140km - 2863-5-1y-pt - - - 1550/1550 2 5 -28 -8 13 30
MM/SF2 220/550m1 - 2870-0-1y-pt - - - 1310/1550 -9 -3 -18 -3 - 9
MM/SF2 220/550m1 - 2871-0-1y-pt - - - 1550/1310 -9 -3 -18 -3 - 9
SM/SF2 20km
 - 2870-1-1y-pt - - - 1310/1550 -9.5 -3 -20 -3 - 10.5
SM/SF2 20km
 - 2871-1-1y-pt - - - 1550/1310 -9.5 -3 -20 -3 - 10.5
SM/SF2 40km
 - 2870-2-1y-pt - - - 1310/1550 -3 0 -20 -3 3 17
SM/SF2 40km
 - 2871-2-1y-pt - - - 1550/1310 -3 0 -20 -3 3 17
SFP (x1) - - - - 2879-0-1y-pt - - - - - - - -
SFP (x2) - - - - 2879-0-2y-pt - - - - - - - -
RJ-45 (x2) 100m - - - - 2879-1-2y-pt - - - - - - -

1 62.5/125?m, 100/140?m multimode fiber up to 220m. 50/125?m multimode fiber up to 550m.

2 When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other.

MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber

Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.

Step 2: Choose the number of RJ-45 Ports (xxxx-x-xy-pt)

4 = Four RJ-45 Ports
8 = Eight RJ-45 Ports

Step 3: Choose the Power Option (xxxx-x-xy-pt)

1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord
8 = External AC/DC Adapter, 100 - 240 VAC included, PS JET/PSE Certified, with Japanese Power Cord
9 = Direct DC 2 pin terminal connector, no AC/DC power adapter

Step 4: Choose the Operating Temperature Range Option (xxxx-x-xy-pt)

 <leave blank> = Commercial temperature (0 to 50?C)
 W = Wide temperature (-40 to 60?C)
 Z = Extended temperature (-40 to 75?C)



Accessories

Model NumberDescription
 8251-0  DIN-Rail Mounting Clip
 8260-0  19" rack mount shelf

OmniConverter G/Sx (Data Sheet)

OmniConverter G/Sx (User Manual)

The OmniConverter G/Sx is an unmanaged compact gigabit Ethernet switch that features copper or fiber uplink ports and four or eight 10/100/1000 RJ-45 copper user ports. The OmniConverter G/Sx enables network distance extension with fiber cabling.

The OmniConverter G/Sx is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The OmniConverter G/Sx supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.

Models with two fiber or two copper uplink ports support daisy-chain configurations or redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

Models with two fiber or two copper uplink ports also support Dual Device mode that enables the G/Sx to operate as two independent and isolated Ethernet switches. In Dual Device mode, the G/Sx provides separate and independent data traffic paths between the two uplink ports and four or eight user ports.

The G/Sx modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the OmniConverter for ease of identification and use.

Models are available with fixed ST, SC, and LC fiber connectors or Small Form Pluggable (SFP) transceiver receptacles. Fiber ports support multimode or single-mode and dual fiber or single-fiber with distances up to 140 km. SFP models support a variety of distances in standard, CWDM and DWDM wavelengths.

All models can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector.

Description OmniConverter® G/SX
10/100/1000BASE-T with Gigabit Fiber or 10/100/1000BASE-T Copper Uplinks
Managed 6 or 10 Port Gigabit Ethernet Switch
Standard Compliances IEEE 802.3
Regulatory Compliances

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14,

             CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions,

             IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

             IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

             IEC 61000-4-6 CS: Signal: 10 V,

             IEC 61000-4-8 (Magnetic Field) 30A/m,

             IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Frame Size Up to 10,240 bytes
Port Types

Copper: RJ-45: 10/100/1000BASE-T

Fiber:     Fixed: ST, SC, LC 1000BASE-X Fiber

               SFP:   10/100/1000BASE-T SGMII Copper Transceiver or

                          100BASE-X SGMII Fiber Transceiver or

                          1000BASE-X SERDES Fiber Transceivers
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:     Multimode: 50/125, 62.5/125?m

               Single-mode: 9/125?m
AC Power Requirements
(Models with AC/DC Adapters)

100 - 240VAC/50 - 60Hz

0.2A max at 115VAC;

0.1A max at 230VAC
DC Power Requirements
(Models with DC Terminals)

4 RJ-45 Ports:

+12 to +57VDC;

0.68A @ 12VDC

0.17A @ 48VDC

2 Pin Terminal (isolated)

8 RJ-45 Ports:

+12 to +57VDC;

0.75A @ 12VDC

0.19A @ 48VDC

2 Pin Terminal (isolated)
Dimensions
;(W x D x H)		 6.28? x 5.2? x 1.5? (159.5 mm x 132.1 mm x 38.1 mm)
Weight 4 RJ-45 Ports:
Module Only: 1.5 lb.; 720 grams
Module with AC/DC Adapter: 2.0 lbs.; 913 grams		 8 RJ-45 Ports:
Module Only: 1.6 lbs.; 748 grams
Module with AC/DC Adapter: 2.1 lbs.; 941 grams
Operating Temperature Commercial: 0 to 50?C
Wide: -40 to 60?C (-20?C AC cold start)
Extended: -40 to 75?C (-20?C AC cold start)
Storage: -40 to 80?C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) Module Only: 309,000
AC/DC Adapter: 100,000
Warranty 5 year product warranty with 24/7/365 free Technical Support
2 year AC power adapter warranty
