OmniConverter® 10G/S

eb037833adde6dd3469d047f4c1e5ad0 XL
The OmniConverter 10G/S are unmanaged 10G Ethernet media converters featuring one 1/10G SFP/SFP+ uplink port and one or two multi-gigabit/multi-rate RJ-45 user ports. The RJ-45 user ports support multi-gigabit/multi-rate speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps, supporting frame ...Read more

Features
  • Unmanaged 10G multi-gigabit/multi-rate media converters
  • Directed Switch mode prevents flooding of multicast video traffic
  • 1 1/10G SFP/SFP+ standard/CWDM/DWDM transceiver uplink port
  • Wall, Rack and DIN-rail mountable
  • RJ-45 multi-gigabit/multi-rate ports support speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

Security and Small Cell Application

In this combined application, each OmniConverter 10G/S media converter connects to an iConverter® XM5 10G fiber switch. The OmniConverter media converters are providing high speed connectivity to small cell devices that require up to 10Gbps of bandwidth and IP surveillance cameras and Wi-Fi 6/6E Access Points. All devices are located near an AC power source.

Work Group Application 10G/S

  • Unmanaged 10G multi-gigabit/multi-rate media converters
  • Directed Switch mode prevents flooding of multicast video traffic
  • One 1/10G SFP/SFP+ standard/CWDM/DWDM transceiver uplink port
  • Uplink port supports copper and fiber SFP/SFP+ transceivers
  • RJ-45 multi-gigabit/multi-rate ports support speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps
  • Multiple port configurations:
    • 2 Port Device: 1 SFP/SFP+ + 1 RJ-45
    • 3 Port Device: 1 SFP/SFP+ + 2 RJ-45
  • AC to DC Power Adapter or 2-Pin DC terminal
  • Wall, Rack and DIN-rail mountable
  • Commercial (0? to 50?C) and wide (-40? to 60?C) operating temperature ranges
  • TAA, BAA and NDAA Compliant, and Made in the USA
  • Lifetime warranty and free 24/7/365 Technical Supportt
OmniConverter 10G/S Models
Model NumberDescription

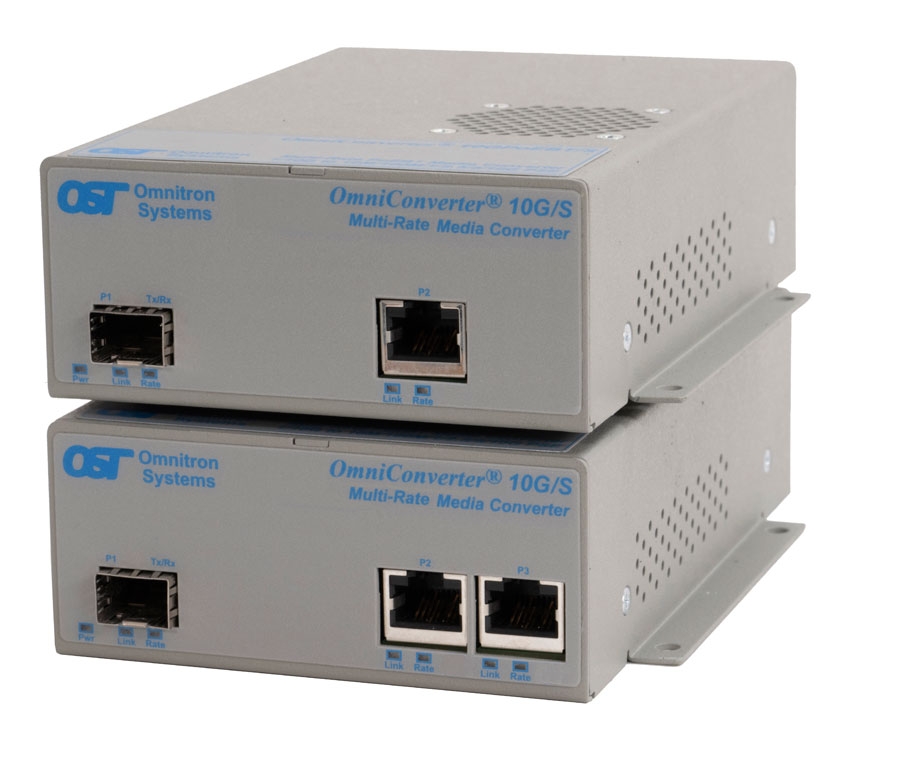

9190-0-11-pt OmniConverter 10G/S 1 x SFP/SFP+ uplink port and 1 x RJ-45 user ports
9190-0-12-pt OmniConverter 10G/S 1 x SFP/SFP+ uplink port and 2 x RJ-45 user ports
Power Options (p):
1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord 8 = External AC/DC Adapter, 100 - 240 VAC included, with Japanese Power Cord
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord 9 = Direct DC 2 pin terminal connector, no AC/DC power adapter
Operating Temperature Options (t):
<leave blank> = Commercial temperature (0 to 50?C) W = Wide temperature (-40 to 60?C)
Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.



Accessories
Model NumberDescription
8251-0 DIN Rail Mounting Clip
8260-0 19? 1U Rack Mount Shelf (up to 3 converters)

OmniConverter 10G/S (Data Sheet)

OmniConverter 10G/S (User Manual)

The OmniConverter 10G/S are unmanaged 10G Ethernet media converters featuring one 1/10G SFP/SFP+ uplink port and one or two multi-gigabit/multi-rate RJ-45 user ports.

The RJ-45 user ports support multi-gigabit/multi-rate speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps, supporting frame sizes up to 10,240 bytes.

The two RJ-45 port models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.

The 10G/S feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 100M/1G/2.5G/5G/10GBASE-T multi-gigabit copper transceivers and 1G and 10G multimode or singlemode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.

The media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting clip (8251-0). They can also be mounted on a 1U 19? rack-mount shelf. They are available with DC input power via terminal connectors or external 100 to 240VAC power adapter.

Description OmniConverter 10G/S
Multi-gigabit/multi-rate copper to 1/10G SFP Media Converter
Standard Compliances IEEE 802.3, 802.3bz
Regulatory Compliances

Safety: UL 62368-1*,

             UL 60950-1*,

             IEC 62368-1*,

             IEC 60950-1*,

             EN 62368-1*,

             EN 60950-1*,

             CAN/CSA C22.2 No. 62368-1-14*,

             CAN/CSA C22.2 No. 60950-1*,

             CE Mark,

             UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             UKCA

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m,

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

             IEC 61000-4-6 CS: Signal: 3 Vrms,

             IEC 61000-4-8 ( Magnetic Field) 30 A/m,

             IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT:      TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size Up to 10,240 bytes
Port Types

Copper:      10/100/1000BASE-T, 2.5GBASE-T/5GBASE-T/10GBASE-T (RJ-45)

SFP/SFP+: 10GBASE-X Fiber Transceivers, 10GBASE-T Copper Transceivers

                    1000BASE-X Fiber Transceivers, 1000BASE-T Copper Transceivers

                    10/100/1000BASE-T SGMII Copper Transceivers

                    10/100/1000/2.5G/5G/10GBASE-T Multi-rate Copper Transceivers
Cable Types

Copper: Twisted-pair cable up to 100 meters

              10BASE-T: 4-pair UTP Cat 3, 4, 5, 5e, 6, 6A

              100BASE-TX: 4-pair UTP Cat 5, 5e, 6, 6A

              1G/2.5G: 4-pair UTP Cat 5e, 6, 6A, 7

              5G: 4-pair UTP Cat 6, 6A, 7

              10G: 4-pair UTP Cat 6A, 7

Fiber:     Multimode: 50/125, 62.5/125?m

              Single-mode: 9/125?m
AC Power Requirements
(Models with AC/DC Adapters)

1 RJ-45 Port

100 - 240VAC/50 - 60Hz; 0.1A @ 120VAC (typical)

2.5 mm Barrel Connector

2 RJ-45 Ports

100 - 240VAC/50 - 60Hz; 0.14A @ 120VAC (typical)

2.5 mm Barrel Connector
DC Power Requirements
(Models with DC Terminals)

1 RJ-45 Port

+12 to +57VDC; 0.19A @ 56VDC

2 Pin Terminal

2 RJ-45 Ports

+12 to +57VDC; 0.25A @ 56VDC

2 Pin Terminal
Dimensions
W x D x H		 4.8? x 6.0? x 1.75? (121.92 mm x 152.4 mm x 44.45 mm)
Weight Module Only:           1.1 lbs. (498.9 grams)
Module w/ Adapter: 1.6 lbs. (725.7 grams)
Operating Temperature Commercial: 0 to 50?C
Wide:         -40 to 60?C (-20?C AC cold start)
Storage:     -40 to 80?C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs) Module Only: 271,000
AC/DC Adapter: 100,000
Warranty Lifetime warranty with registration and 24/7/365 free Technical Support
* Pending
