Industrial 10/100BASE-T to 100BASE-X Ethernet Media Converters with PoE Powering

miConverter® Industrial 10/100 PoE/D

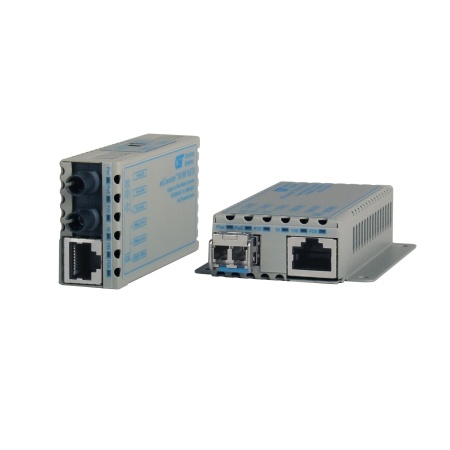

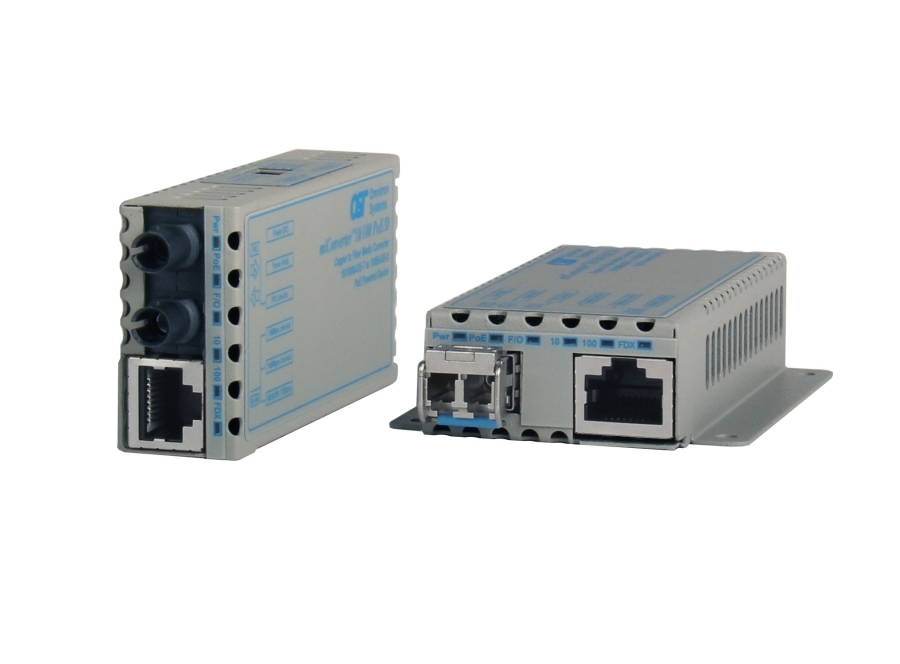

ce742d950ca63a98d59ecec5eba0da2e XL
The miniature miConverter 10/100 PoE/D is a rate-switching 10/100 RJ-45 copper to 100BASE-X fiber industrial media converter that can be powered with Power over Ethernet (PoE) when connected to PoE switches and midspans. It can also be powered with DC power or AC power with an external power adapter ...Read more

Features
  • Industrial Miniature Media Converter with PoE Powering
  • Extended (-40? to 75?C) and Industrial* (-40? to 85?C) operational temp ranges
  • Mini 10/100BASE-T to 100BASE-X Ethernet media converter powered by PoE
  • Power-over-Ethernet (IEEE 802.3af PoE/PD) with redundant power options
  • Fixed fiber port supports MM and SM DF with ST, SC and LC connectors; and SM SF with SC connectors
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

Fiber Distance Extension with PoE

The application example below shows how miConverter 10/100 PoE/D converters are deployed to enable plug-and-play fiber connectivity from PoE switches.

The miConverter 10/100 PoE/D is powered by a UTP patch cable and converts the copper to fiber to connect to a remote PoE IP camera. At the remote end of the fiber run, an OmniConverter PoE power-sourcing media converter converts the fiber back to copper and injects PoE (up to 60W) to power the IP camera. The OmniConverter is powered by AC power and injects up to 60W PoE.



1120NDS-A miConverter 10-100 PoE-D application2



Fiber to the Premises

In the application example shown below, the miConverter 10/100 PoE/D provides outdoor media conversion for an FTTx service without an outdoor power source.

A Service Provider deploys the miConverter 10/100 PoE/D in a NEMA enclosure on the outside wall of a customer premises for fiber to copper conversion that provides connectivity to the indoor demarcation router.

The miConverter 10/100 PoE/D is powered by a midspan located inside the customer premises. This enables fast and simple installation of the media converter, and eliminates the cost of installing an outdoor power outlet.

 1120NDS-A miConverter 10-100 PoE-D application

1120NDS-A miConverter 10-100 PoE-D application UTP

  • Industrial Miniature Media Converter with PoE Powering
  • Extended (-40? to 75?C) and Industrial* (-40? to 85?C) operational temperature ranges
  • Cost-effective, miniature 10/100BASE-T to 100BASE-X Ethernet media converter powered by PoE
  • Supports 10BASE-T, 100BASE-TX, 100BASE-X and IEEE 802.3 specifications
  • Compact and light weight
  • Fixed fiber port supports multimode and single-mode dual fiber with ST, SC and LC connectors; and single-mode single-fiber with SC connectors
  • SFP transceivers for standard or CWDM wavelengths
  • RJ-45/PoE port supports Full/Half-Duplex auto-negotiation and MDI/MDIX auto-crossover
  • LED indicators for RJ-45 and fiber port status
  • User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
  • Power-over-Ethernet (IEEE 802.3af PoE/PD) with redundant power options:
    • Wide Range DC Power input 8-60VDC (2-Pin Terminal) or
    • Universal AC power adapter
  • Available with or without integrated mounting brackets
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support

* DC Terminal Model Only

Step 1: Choose a Base Part Number (xxxxD-x-bpt)

Fiber
Type		DistanceConnector TypeTx/Rx
Lambda
(nm)		Min. Tx
Power
(dBm)		Max. Tx
Power
(dBm)		Min. Rx
Power
(dBm)		Max. Rx
Power
(dBm)		Min
Atten
(dB)		Link
Budget
(dB)
STSCLCSFP
- - - - - 1119D-0-bpt - - - - - - -
MM/DF 5km 1100D-0-bpt 1102D-0-bpt 1106D-0-bpt - 1310 / 1310 -24 -14 -31 -14 - 7
SM/DF 30km 1101D-1-bpt 1103D-1-bpt 1107D-1-bpt - 1310 / 1310 -15 -8 -31 -8 - 16
SM/DF 60km 1101D-2-bpt 1103D-2-bpt - - 1310 / 1310 -5 0 -31 -3 3 26
SM/DF 120km - 1103D-3-bpt - - 1550 / 1550 -5 0 -31 -3 3 26
MM/SF1 5km - 1110D-0-bpt - - 1310 / 1550 -8 0 -28 0 - 20
MM/SF1 5km - 1111D-0-bpt - - 1550 / 1310 -8 0 -28 0 - 20
SM/SF1 20km - 1110D-1-bpt - - 1310 / 1550 -15 -5 -30 -3 - 15
SM/SF1 20km - 1111D-1-bpt - - 1550 / 1310 -15 -5 -30 -3 - 15
SM/SF1 40km - 1110D-2-bpt - - 1310 / 1550 -8 0 -30 -3 3 22
SM/SF1 40km - 1111D-2-bpt - - 1550 / 1310 -8 0 -30 -3 3 22
SM/SF1 60km - 1110D-3-bpt - - 1310 / 1150 -5 0 -31 -3 3 26
SM/SF1 60km
 - 1111D-3-bpt - - 1550 / 1310 -5 0 -31 -3 3 26

1 When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.

MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber

Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.



Step 2: Choose a Mounting Bracket Option (xxxxD-x-bpt)

0 = Without Integrated Mounting Brackets
1 = With Integrated Mounting Brackets



Step 3: Choose a Power Option (xxxxD-x-bpt)

0 = PoE/PD Power, Barrel Connector, No AC/DC Power Adapter

1 = PoE/PD Power, Barrel Connector and AC/DC Power Adapter, 100-240VAC, 50-60Hz, with US power clip

2 = PoE/PD Power, Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

3 = PoE/PD Power, Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

4 = PoE/PD Power, Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

5 = PoE/PD Power, Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

8 = PoE/PD Power, Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

9 = PoE/PD Power, 2 Pin DC Terminal Connector 8-60VDC, No Power Adapter



Step 4: Choose an Operating Temperature Option (xxxxD-x-bpt)

Z = Extended temperature (-40 to 75?C)
Y =  Industrial temperature (-40 to 85?C) - Only available with 2 Pin DC models





Accessories

Model NumberDescription
1020-1
18-Module AC Powered Chassis*
1025-1
18-Module 48VDC Powered Chassis*
1026-1
18-Module 24VDC Powered Chassis*
1091-0
Wall Mounting Hardware Kit
8252-0
DIN Rail Mounting Clip
9119-PSE
Spare JET/PSE certified Universal AC/DC Power Adapter for Wide and Extended temperature models (no power cord)
9129-PS
Spare Universal AC/DC Power Adapter for Wide and Extended temperature models (no power cord)
* Not for use with Extended temperature models or DC Terminal Connector models.
Contact Omnitron for replacement power adapters and other accessories.

miConverter Industrial 10/100 PoE/D (Data Sheet)

miConverter Industrial 10/100 PoE/D (User Manual)

The miniature miConverter 10/100 PoE/D is a rate-switching 10/100 RJ-45 copper to 100BASE-X fiber industrial media converter that can be powered with Power over Ethernet (PoE) when connected to PoE switches and midspans. It can also be powered with DC power or AC power with an external power adapter. The miConverter 10/100 PoE/D miniature Ethernet media converters provide cost-effective copper-to-fiber connectivity solutions. Due to their size, portability, and low power consumption, they are ideal for fiber-to-the-desktop/laptop under the desk deployments and mission-critical field diagnostic applications.

The miConverter 10/100 PoE/D features fixed fiber connectors and Small Form Pluggable (SFP) transceivers. ST, SC and LC fixed fiber connectors support multimode, single-mode, and single-mode single-fiber. 100BASE-X SFP transceivers enable adaptability to different fiber types and wavelengths, including Coarse Wave Division Multiplexing (CWDM) wavelengths to increase the bandwidth capacity of fiber infrastructure.

The RJ-45 port can auto-negotiate by detecting the speed and duplex-mode of the connected device. Upon connection to the UTP device, the RJ-45 port speed adjusts to either 10Mbps or 100Mbps, and the duplex-mode adjusts to either Full-Duplex or Half-Duplex. Auto-crossover enables the connection to workstations (MDI port) or hub/switches (MDI-X port) without requiring a crossover cable.

DIP-switches enable manual configuration of the RJ-45 port speed and duplex modes, and configuration of Link Modes (fault-detection capabilities) that enable in the identification and isolation of link failures.

Diagnostic data is provided through front-panel LED indicators that assist in network installation and maintenance. The LEDs display the availability of power, port activity, link status, and the speed and duplex modes of the RJ-45 port.

The miConverter 10/100 PoE/D features power redundancy with AC or DC external power options when used with PoE powering. AC model includes a universal power adapter. DC power up to 60VDC is available with a terminal connector option.

The miConverter 10/100 PoE/D is available with or without integrated mounting brackets.

Description
miConverter Industrial 10/100 PoE/D
10/100BASE-T to 100BASE-X Fiber Converter Powered by PoE
Standard Compliances
 IEEE 802.3, 802.3af
Regulatory Compliances

Safety: UL, cUL, CE, UKCA

EMI: FCC Class A

ACT: TAA, BAA, NDAA
Environmental RoHS, REACH, WEEE
Frame Size
 Up to 2,048 bytes
Port Types
Copper:
Fiber:
10/100BASE-T (RJ-45)
 100BASE-X (ST, SC, LC, SFP)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125?m, 62.5/125?m
Single-mode: 9/125?m
AC Power Requirements
AC/DC Adapter:

100 - 240VAC/50 - 60Hz
0.03 @ 120VAC (max)
DC Power Requirements
DC Input:
(AC/DC Adapter)


DC Input:
(Terminal Connector)


DC Input:
(PoE)
8.0 to 60.0VDC
0.28 @ 9VDC
2.5mm Barrel Connector

8.0 to 60.0VDC
0.28 @ 9VDC
2-Pin Terminal (non-isolated)

44 - 57VDC, 0.05A @ 48VDC (typical)
RJ-45 (Alternative A & B)
Dimensions
(W x D x H)
Module:


w/Mounting
Brackets:
1.71? x 4.10? x 0.84?
(43.4 mm x 104.1 mm x 21.3 mm)

2.41? x 4.10? x 0.84?
(61.2 mm x 104.1 mm x 21.3 mm)
Weight
Module Only:
with AC/DC Adapter:
 4 oz. (113.4 grams)
12 oz. (340.2 grams)
Temperature
Extended:
Industrial:
Storage
-40 to 75?C, -20?C AC cold start
-40 to 85?C
-50 to 85?C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Module Only:
AC/DC Adapter:
1,160,000
206,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
