6 and 10-Port Industrial 10G Unmanaged PoE Switches Overview   The RuggedNet 10GPoE+/Si is a ruggedized unmanaged PoE and PoE+ industrial Ethernet switch that features two 1/10G uplink ports and four or eight 10/100/1000 RJ-45 Power Sourcing Power-over-Ethernet ports. The RuggedNet 10GPoE+/S ...Read more

Features
  • Unmanaged Industrial 6 and 10 Port PoE/PoE+ 1/10G Ethernet switch
  • Two 1/10G SFP/SFP+ transceiver uplink ports
  • 4 or eight 10/100/1000 copper PoE/PoE+ ports
  • Provides full PoE/PoE+ power simultaneously to all RJ-45 ports
  • Industrial (-40 to 75? C) operating temp
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

6 and 10-Port Industrial 10G Unmanaged PoE Switches Applications



Daisy Chain Application

This example demonstrates the daisy chain capabilities of the RuggedNet PoE switches. In this application each RuggedNet switch connects to its neighboring switch via its uplink ports The daisy chain can continue to additional switches using this method of connectivity.

Each RuggedNet switch provides high speed connectivity to the fiber links, and power to IP cameras and Wi-Fi access points at each location along the daisy chain.

Industrial Manufactring Application 10GPoE Si

Dual Device Mode Application

This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location.

The example below depicts a scenario where a surveillance security (purple) network and a Wi-Fi (green) network are sharing a single hub distribution location. Using the two uplinks and the Dual Switch mode facilitates using a single PoE switch driving both the Cameras and the Wi-Fi Access Points while maintaining isolation between the networks.

Dual Media Converter Mode10GPoE Si

Omnitron?s 6 and 10-Port Industrial 10G Unmanaged PoE Switches Features



  • Unmanaged Industrial 6 and 10 Port PoE/PoE+ 1/10G Ethernet switch
  • Two 1/10G SFP/SFP+ transceiver uplink ports
  • Supports copper and fiber SFP transceivers
  • Supports speeds of 10M, 100M, 1G and 10Gbps copper SFP/SFP+ transceivers
  • Four or eight 10/100/1000 copper PoE/PoE+ ports
  • Provides full PoE/PoE+ power simultaneously to all RJ-45 ports
  • Supports jumbo frames up to 10,240 bytes
  • Configurable PoE Power Reset
  • Uplink redundancy
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode to prevent port flooding
  • Dual DC power for redundancy
  • Wall, Rack and DIN-rail mountable
  • Fan-less design
  • Industrial (-40 to 75? C) operating temperature
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Free 24/7/365 Technical Support

How to Order Your 6 and 10-Port Industrial 10G Unmanaged PoE Switch


Complete the ordering form and we will expedite a quote through one of our approved distributors.

RuggedNet 10GPoE+/Si Models
Model NumberDescription
9583-0-24-2Z RuggedNet 10GPoE+/Si 2 x SFP/SFP+ uplink port and 4 x RJ-45 PoE/PoE+ ports, Dual DC Terminal Connectors, Industrial Temperature
9583-0-28-2Z RuggedNet 10GPoE+/Si 2 x SFP/SFP+ uplink port and 8 x RJ-45 PoE/PoE+ ports, Dual DC Terminal Connectors, Industrial Temperature
Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page. web page.



Accessories
Model NumberDescription Wall Mount Plate
 8260-3  Wall Mounting Plate
 8260-0  19" rack mount shelf

RuggedNet 10GPoE+/Si (Data Sheet)

RuggedNet 10GPoE+/Si (User Manual)



Wall Mount Plate (User Manual)

6 and 10-Port Industrial 10G Unmanaged PoE Switches Overview

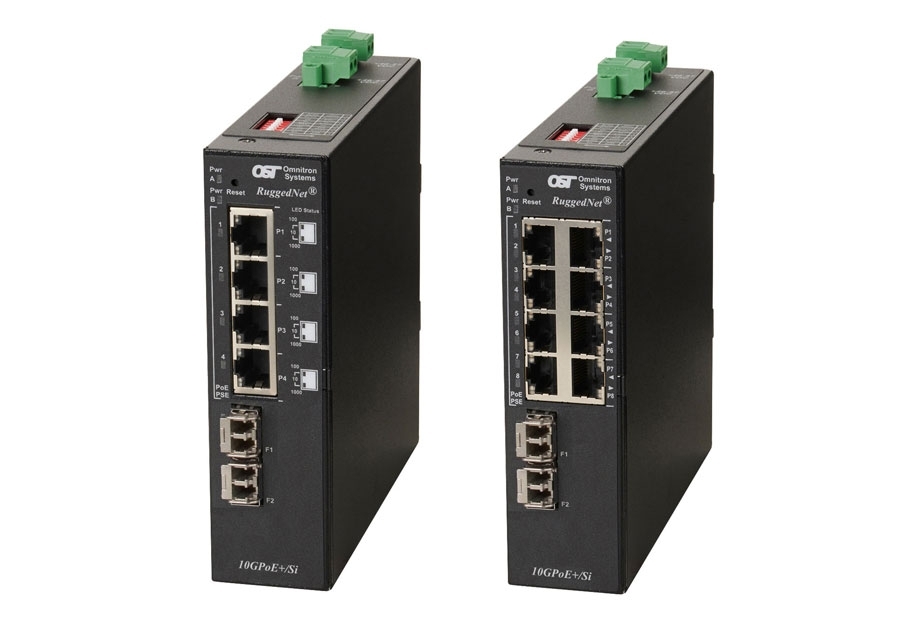

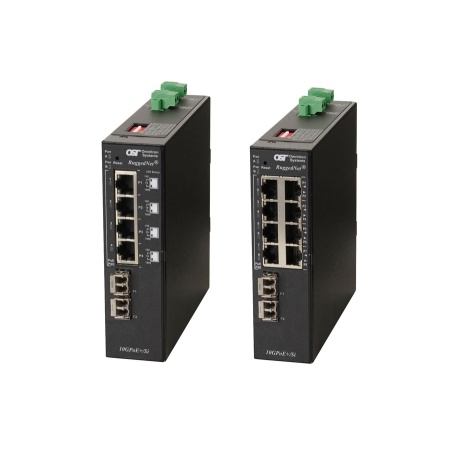

The RuggedNet 10GPoE+/Si is a ruggedized unmanaged PoE and PoE+ industrial Ethernet switch that features two 1/10G uplink ports and four or eight 10/100/1000 RJ-45 Power Sourcing Power-over-Ethernet ports.

The RuggedNet 10GPoE+/Si is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

The RuggedNet 6 and 10-port industrial 10g unmanaged PoE switches support Dual Device mode that enables the 10GPoE+/Si to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10GPoE+/Si provides separate and independent data traffic paths between each uplink port and a group of copper ports.

The modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the RuggedNet for ease of identification and use.

The RuggedNet 6 and 10-port industrial 10g unmanaged PoE switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or singlefiber and standard or CWDM/DWDM wavelengths.

The 10GPoE+/Si automatically negotiates and delivers the power level required by a Powered Device (PD) partner. The 10GPoE+/Si can deliver up to 30 Watts of power per copper port.

The switches feature a Remote PoE Power Reset that can be configured with a DIP-switch. This feature enables the user to remotely power-cycle and reset each PD increasing network reliability, up time and save manpower time and expense by automating the recovery of remote PD equipment.

The RuggedNet compact industrial PoE Ethernet switches can be wall or rack mounted using an optional wall mount bracket shelf or DIN-rail mounted using the included DINrail mounting clip. They are available with dual DC input power.

6 and 10-Port Industrial 10G Unmanaged PoE Switches: Detailed Product Specifications

Description RuggedNet 10GPoE+/Si
10/100/1000BASE-T with 1/10G Uplink Ports
Ruggedized Unmanaged PoE+ 10Gigabit Ethernet Switch
Standard Compliances IEEE 802.3, IEEE 802.3af (15.40 watts), IEEE 802.3at (30 watts)
Regulatory Compliances
(*Pending)

Safety*: UL 62368-1, UL 60950-1,

               IEC 62368-1, IEC 60950-1,

               EN 62368-1, EN 60950-1,

               CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

               CE Mark, UKCA

EMC:      EN 55032/24 CE Emissions/Immunity,

               IEC 61000-6-4 Industrial Emissions,

               IEC 61000-6-2 Industrial Immunity

EMI:       CISPR 32,

               FCC 47 Part 15 Subpart B Class A

EMS:      IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

               IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

               IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

               IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV,

               IEC 61000-4-6 CS: Signal: 10 V,

               IEC 61000-4-8 ( Magnetic Field), 30A/m,

               IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP40 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
PoE Modes IEEE Alternate A (Alt A)
Frame Size Up to 10,240 bytes
Port Types

Copper:      10/100/1000BASE-T (RJ-45)


SFP/SFP+: 10GBASE-X Fiber Transceivers

                    10GBASE-T Copper Transceivers

                    1000BASE-X Fiber Transceivers

                    1000BASE-T Copper Transceivers

                    10/100/1000BASE-T SGMII Copper Transceivers
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:    Multimode: 50/125, 62.5/125?m

              Single-mode: 9/125?m
DC Power Requirements

4 RJ-45 Ports:

+46 to +57VDC;

2.33A @ 56VDC

2 Pin Terminal (isolated)

8 RJ-45 Ports

+46 to +57VDC;

4.49A @ 56VDC

2 Pin Terminal (isolated)
Dimensions (W x D x H) 1.5? x 5.5? x 5.5? (38.1 mm x 139.7 mm x 139.7 mm)
Weight

4 RJ-45 Ports:

1.70 lb. (772 grams)

8 RJ-45 Ports:

1.77 lb. (803 grams)
Operating Temperature Industrial: -40 to 75?C
Storage: -40 to 80?C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) 280,000
Warranty
5 year product warranty with 24/7/365 free Technical Support



Power / Voltage Requirements and Specifications

Description

IEEE 802.3af PoE

IEEE 802.3at PoE+
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts
* at 100 meters using Cat5
