120 watts to 960 watts The Industrial DIN rail mountable 48VDC power supplies are designed for the environment

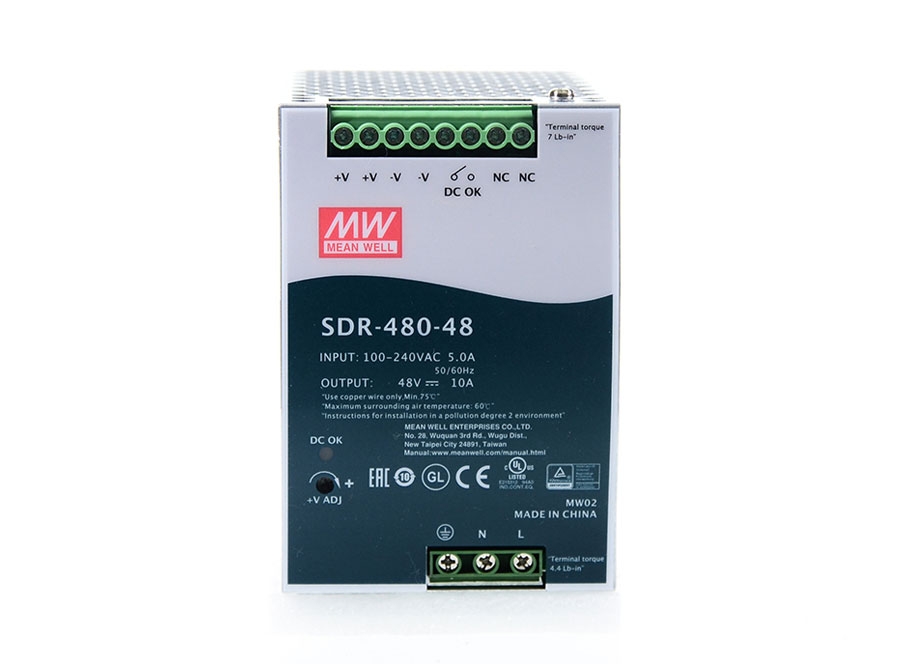

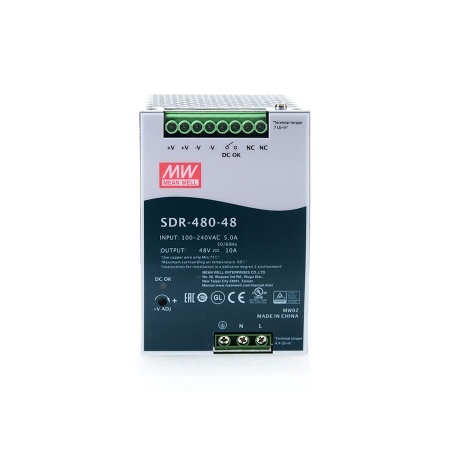

Industrial DIN Rail Mountable 48VDC Power Supplies

cef09c4dc3d0d8d265ab7ea9482b510d XL
The Industrial DIN rail mountable 48VDC power supplies are designed for the environment where a DC voltage power source is not available.  They are single 48VDC industrial DIN rail power supplies, which accept an AC input voltage of 88-264 AC (see detailed spec below) and provides 48VDC ou ...Read more

Features
  • Metal case, slim size
  • 94% high efficiency and complete functions
  • 130%~150% peak load capability by models
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage / Over temp
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents
  • Metal case, slim size
  • 94% high efficiency and complete functions
  • 130%~150% peak load capability by models
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Convection cooling
  • Can be installed on DIN rail TS-35 / 7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2 (EN500B2-2) industrial immunity level
  • Built-in DC OK relay contact
  • -25 to 70C operating temperature range (-30 to 70C for SDR-960)
  • 3 year warranty

9170-PS-120 Industrial Power Supply (Datasheet)

9170-PS-240 Industrial Power Supply (Datasheet)

9170-PS-480 Industrial Power Supply (Datasheet)

9170-PS-960 Industrial Power Supply (Datasheet)

Industrial Power Supply (Installation Manual)

The Industrial DIN rail mountable 48VDC power supplies are designed for the environment where a DC voltage power source is not available.  They are single 48VDC industrial DIN rail power supplies, which accept an AC input voltage of 88-264 AC (see detailed spec below) and provides 48VDC output with up to 960 watts (depending on the model).



Model NumberDescription
9170-PS-120 Industrial DIN Rail Mounted Power Supply
Input: 88 - 264 VAC 47 to 63Hz *
Output: 48 - 55 VDC, 2.5A, 120 Watts
9170-PS-240 Industrial DIN Rail Mounted Power Supply
Input: 88 - 264 VAC 47 to 63Hz *
Output: 48 - 55 VDC, 5.0A, 240 Watts
9170-PS-480 Industrial DIN Rail Mounted Power Supply
Input: 90 - 264 VAC 47 to 63Hz *
Output: 48 - 55 VDC, 10.0A, 480 Watts
9170-PS-960 Industrial DIN Rail Mounted Power Supply
Input: 180 - 264 VAC 47 to 63Hz **
Output: 48 - 55 VDC, 20.0A, 960 Watts

*Note: Input Voltage less than 100VAC the power supply derates. Please check data sheet for the derating curve details.

**Note: Input Voltage less than 200VAC the power supply derates. Please check data sheet for the derating curve details.
