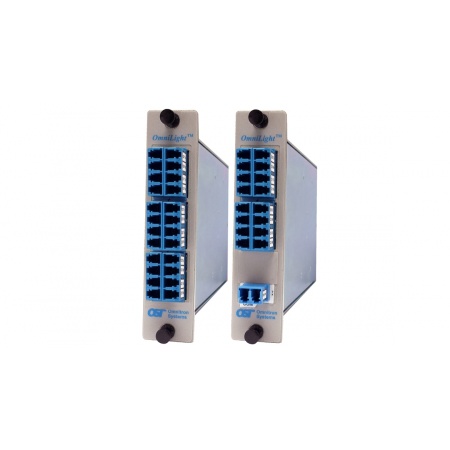

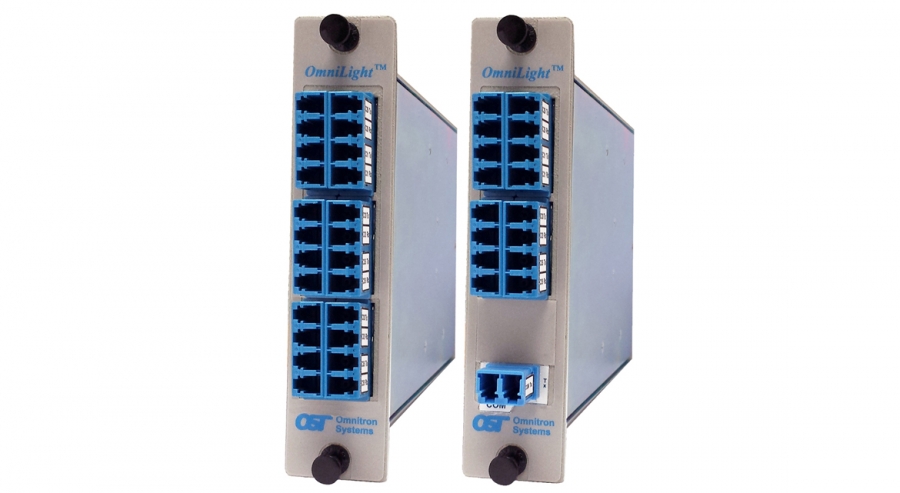

OmniLight® 8-Channel LGX Dual Fiber DWDM MUX/DEMUX modules

3b44b5000d3ada04c028c395cd05cbfb XL
OmniLight 8-Channel LGX Dual Fiber DWDM MUX/DEMUX modules support DWDM channels 28 through 35, 36 through 43 and 52 through 59 in 100GHz spacing. An expansion port is available to cascade multiple DWDM MUX/DEMUX modules, doubling the capacity of the common fiber link to 16 c ...Read more

Features
  • Optional OTDR port available
  • Scalable for new deployments and network upgrades using the expansion port
  • Protocol and rate transparent for applications up to 10Gbps
  • Industry standard LC/UPC connectors
  • LGX Form Factor
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

OmniLight 8-Channel LGX Dual Fiber DWDM MUX/DEMUX modules with Expansion, Tap and optional OTDR Ports

  • Optional OTDR port available
  • Scalable for new deployments and network upgrades using the expansion port
  • Protocol and rate transparent for applications up to 10Gbps
  • Industry standard LC/UPC connectors
  • LGX Form Factor
  • Can be installed in any OmniLight chassis
  • One (1) Year Warranty and Free 24/7 Technical Support
Model Number
Model Type
Channel Port
ITU Grid Channel Numbers
ITU Center Wavelengths (nm)
5520-101
8-Channel DWDM MUX/DEMUX
Channel 28 - Channel 35 with Expansion Port and Tap Ports
C28, C29, C30, C31, C32, C33, C34, C35
1554.94, 1554.13, 1553.33, 1552.52, 1551.72, 1550.92, 1550.12, 1549.32
5520-102
8-Channel DWDM MUX/DEMUX
Channel 28 - Channel 35 with Expansion Port, Tap Ports and OTDR
C28, C29, C30, C31, C32, C33, C34, C35
1554.94, 1554.13, 1553.33, 1552.52, 1551.72, 1550.92, 1550.12, 1549.32
5520-103
8-Channel DWDM MUX/DEMUX
Channel 36 - Channel 43 with Expansion Port and Tap Ports
C36, C37, C38, C39, C40, C41, C42, C43
1548.51, 1547.72, 1546.92, 1546.12, 1545.32, 1544.53, 1543.73, 1542.94
5520-104
8-Channel DWDM MUX/DEMUX
Channel 36 - Channel 43 with Expansion Port, Tap Ports and OTDR
C36, C37, C38, C39, C40, C41, C42, C43
1548.51, 1547.72, 1546.92, 1546.12, 1545.32, 1544.53, 1543.73, 1542.94
5520-105
8-Channel DWDM MUX/DEMUX
Channel 52 - Channel 59 with Expansion Port and Tap Ports
C52, C533, C54, C55, C56, C57, C58, C59
1535.82, 1535.04, 1534.25, 1533.47, 1532.68, 1534.90, 1531.12, 1530.33
5520-106
8-Channel DWDM MUX/DEMUX
Channel 52 - Channel 59 with Expansion Port,Tap Ports and OTDR
C52, C533, C54, C55, C56, C57, C58, C59
1535.82, 1535.04, 1534.25, 1533.47, 1532.68, 1534.90, 1531.12, 1530.33



Model Number
  Description
5800-1
  OmniLight 14-Module 3-RU Passive Optical Chassis
5800-5
  OmniLight 3-Module 1-RU Passive Optical Shelf
5800-20
   23? Rack Mount Extender
5800-21
   Wall Mount Bracket



OmniLight 8-Channel DWDM Mux (Datasheet)

OmniLight 8-Channel DWDM Mux (User Manual)

OmniLight 8-Channel LGX Dual Fiber DWDM MUX/DEMUX modules support DWDM channels 28 through 35, 36 through 43 and 52 through 59 in 100GHz spacing. An expansion port is available to cascade multiple DWDM MUX/DEMUX modules, doubling the capacity of the common fiber link to 16 channels or tripling the capacity to 24 channels. Tap ports are available to monitor optical levels of the incoming and outgoing common channels. An optional Optical Time Domain Reflectometer (OTDR) port is available which provides the ability to test the integrity of the fiber optic link without disturbing the wavelength channels.


Functional diagram DWDM MUX with Tap, Expansion and optional OTDR Ports



 Block Diagram DeMUX 2

Functional diagram DWDM DEMUX with Tap, Expansion and optional OTDR Ports



OmniLight family of LGX form factor CWDM and DWDM passive optical modules and chassis support the highest port density available in the LGX form factor.

OmniLight optical modules are passive devices that require no external power. They can be installed in any OmniLight chassis.



 OmniLight LGX Chassis  OmniLight 3 Module Shelf
Description
 OmniLight DWDM MUX/DEMUX
 8-Channel Dual Fiber DWDM MUX/DEMUX
Regulatory Compliances
Telecordia GR-1209, GR-1221
UL, CE, RoHS2 (6/6), WEEE, REACH
Port Types
Fiber:
8 Channel: LC (UPC)
Cable Types
Fiber:

Channel Ports:
Common Port:
Single-mode: 9/125?m (OM1)

Dual Fiber
Dual Fiber
Dimensions
 W: 1.162? x D: 6.12? x H: 5.10?
L: 29.51 mm x B: 155.45 mm x H: 129.5 mm
Weight
 1.0 lbs.; 453.6 grams
Operating Temperature
 -5 to 65?C
Storage Temperature
 -40 to 85?C
Humidity
5 to 95% operational (non-condensing)
0 to 95% storage
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
> 1,000,000
Warranty
One (1) year warranty with 24/7/365 free Technical Support






Optical Characteristics
Parameter
Units
Values
Common Port
Operating Wavelength
nm
1520 - 1570
Number of Channels
NA
8 + Expansion
Channel Spacing
GHz
100
DWDM Center Wavelengths
(C28 - C35)
Model 5520-101
nm
1554.94, 1554.13, 1553.33,
1552.52, 1551.72, 1550.92,
1550.12, 1549.32
DWDM Center Wavelengths
(C36 - C43)
Model 5520-102
nm
1548.51, 1547.72, 1546.92,
1546.12, 1545.32, 1544.53,
1543.73, 1542.94
DWDM Center Wavelengths
(C52 - C59)
Model 5520-103
nm
1535.82, 1535.04, 1534.25,
1533.47, 1532.68, 1534.90,
1531.12, 1530.33
Expansion Port
nm
1520 - 1570
OTDR Port
nm
1625 - 1640
DWDM Channel Bandwidth
nm
? 0.12
DWDM Channel Insertion Loss
dB
? 3.7
Expansion Port Insertion Loss
dB
? 3.4
OTDR Port Insertion Loss
dB
? 1.3
Tap Port Insertion Loss (Mux)
dB
? 23.3
Tap Port Insertion Loss (DeMux)
dB
? 20.0
Adjacent Channel Isolation
dB
? 25
Non-adjacent Channel Isolation
dB
? 40
Insertion Loss Thermal Stability
dB/?C
? 0.005
Wavelength Thermal Stability
nm/?C
? 0.002
Polarization Dependent Loss (PDL)
dB
? 0.2
Polarization Mode Dispersion (PMD)
ps
? 0.2
Return Loss
dB
? 45
Directivity
dB
? 50
Optical Operating Power
mW
? 300




8-Channel DWDM Multiplexer/Demultiplexer Wavelengths
