Six-Port Ethernet Switch with Two 10G Ports and Four 10/100/1000 Ports

FlexSwitch? 2X4GT

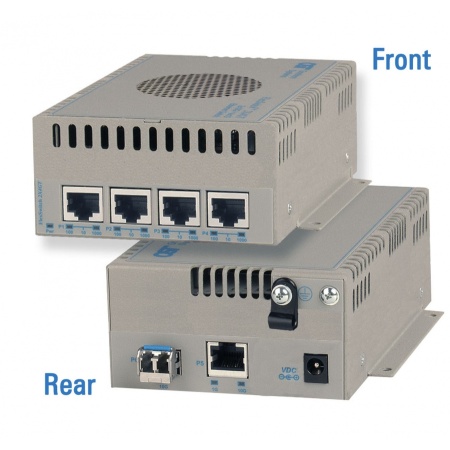

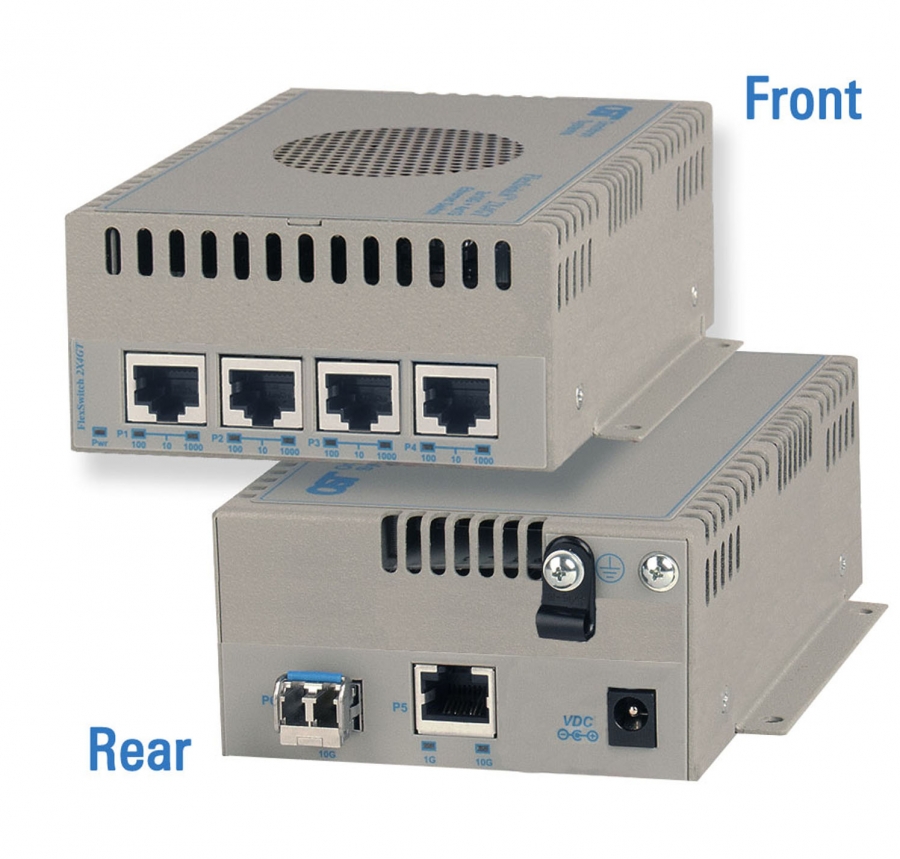

7af0193b8351bd1eb04c09dfe5731fa3 XL
The FlexSwitch? 2X4GT is a six-port Ethernet switch with four 10/100/1000 RJ-45 ports, one 10G (10GBASE-R) SFP+ or XFP fiber port, and one RJ-45 port that auto-negotiates to Gigabit or 10G (1000BASE-T/10GBASE-T). FlexSwitch 2X4GT models that support 10G SFP+ transceivers also sup ...Read more

Features
  • 1x 1G/10G fiber port, 1x 1000BASE-T/10GBASE-T port, and 4x 10/100/1000BASE-T ports
  • Supports MAC learning
  • 10,056 maximum frame size
  • Integrated wall-mount brackets
  • DC power input via barrel connector using external AC adapter or 2-Pin terminal connector
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

The 2X4GT can connect up to five computers, storage devices, and printers within a local workstation network. The 10G Ethernet fiber uplink can connect the workgroup network to a 10G core switch which is part of the enterprise network.

The 2X4GT is compact and easy to use, and does not require user configuration for plug-and-play installation with features such as auto-negotiation and auto-crossover.




1x 1G/10G fiber port, 1x 1000BASE-T/10GBASE-T port, and 4x 10/100/1000BASE-T ports

  • Supports MAC learning
  • LEDs for power, port link/activity, data rates and transceiver status
  • DC power input via barrel connector using external AC adapter or 2-Pin terminal connector
  • 10,056 maximum frame size
  • Integrated wall-mount brackets
  • Can be mounted on a 1U 19" rack-mount shelf
  • Commercial (0 to 50?C) and wide (-40? to 60?C) temperature ranges

{module [590]}

Model Number
Fiber Port Type
10G RJ-45 Port
Description
6900-0-0x
SFP+
0
FlexSwitch 2X4GT Standalone w/mounting brackets
1G/10G SFP+ and 4x 10/100/1000 RJ-45 ports
6900-0-1x
SFP+
1
FlexSwitch 2X4GT Standalone w/mounting brackets
1G/10G SFP+, 1x 10G and 4x 10/100/1000 RJ-45 ports
6900-1-0x
XFP
0
FlexSwitch 2X4GT Standalone w/mounting brackets
10G XFP and 4x 10/100/1000 RJ-45 ports
6900-1-1x
XFP
1
FlexSwitch 2X4GT Standalone w/mounting brackets
10G XFP, 1x 10G and 4x 10/100/1000 RJ-45 ports
 Contact Omnitron for other configurations and RoHS (5/6) compliant models.
 For wide temperature (-40 to 60?C), add a ?W? to the end of the model number.
 Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.


 Accessories
 Model Number
 Description
 8260-0
  19" rack mount shelf
 8251-0
  DIN-Rail Mounting Clip

FlexSwitch 2X4GT (Data Sheet)

FlexSwitch 2X4GT (User Manual)

The FlexSwitch? 2X4GT is a six-port Ethernet switch with four 10/100/1000 RJ-45 ports, one 10G (10GBASE-R) SFP+ or XFP fiber port, and one RJ-45 port that auto-negotiates to Gigabit or 10G (1000BASE-T/10GBASE-T). FlexSwitch 2X4GT models that support 10G SFP+ transceivers also support Gigabit transceivers for a seamless upgrade path from a Gigabit to a 10G fiber link. This compact, unmanaged switch features rate-switching and MAC learning for bridging Gigabit and 10 Gigabit Ethernet networks.

The 10G fiber port is compatible with all MSA compliant Gigabit SFP, 10G SFP+ and XFP transceivers (depending on the model), including xWDM optics, 10GBASE-LRM, and direct attach cables.

The Gigabit/10G RJ-45 port is capable of 10G rates up to 100 meters of CAT-6A (or better) cabling, and conserves energy by operating in Short Reach mode when the cabling is less than 30 meters. The four 10/100/1000 RJ-45 ports support bridging, auto-negotiation for data-rate and duplex mode, and auto MDI/MDI-X that eliminates the need for crossover cables.

Description
 FlexSwitch 2X4GT
 Six-Port Ethernet Switch
Regulatory Compliances*
UL, CE, FCC Class B1, NEBS Level 3, RoHS2 (6/6), REACH, WEEE
Frame Size
Up to 10,056 bytes
Port Types
Copper:



Fiber:

10/100/1000BASE-T (RJ-45)
1000BASE-T (RJ-45)
10GBASE-T (RJ-45)

1000BASE-X (SFP)
10GBASE-R (SFP+ or XFP)
Cable Types
Copper:




Fiber:
10/100/1000BASE-T:
EIA/TIA 568 A/B, Category 5 and higher
10GBASE-T:
EIA/TIA 568 C, Category 6A and higher

Multimode: 50/125um, 62.5/125um
Single-mode: 9/125um
AC Power Requirements
AC Adapter Power:
100 - 240VAC/50-60Hz
0.228A @ 120VAC (max)
DC Power Requirements
DC Barrel Connector:
9 - 16VDC, 2.64A (max)
2.5mm Barrel Connector
Temperature
Commercial:
Wide:
Storage:
   0 to 50?C
-40 to 60?C (-20?C cold start)
-40 to 80?C
Dimensions
W: 4.5? x D: 6? x H: 2.0?
L: 114 mm x B: 152 mm x H: 51mm
Weight
1.5 lbs (0.68 kg)
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
with 2-Pin Connector:
With Power Adapter:
244,000
134,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support
*Compliances Pending
1Requires the use of shielded twisted pair cabling
