OC-3/STM-1 Fiber-to-Fiber Converter/Transponder

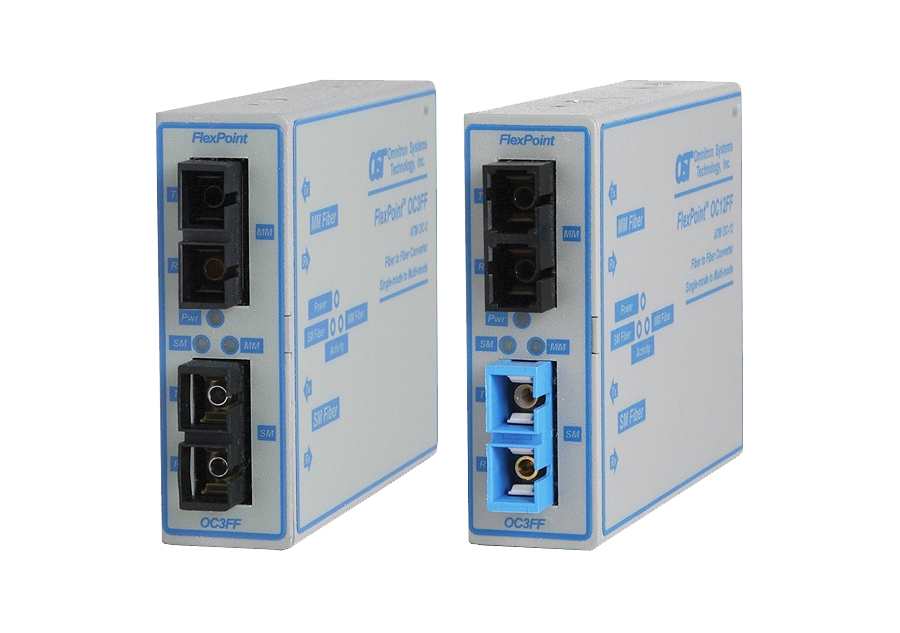

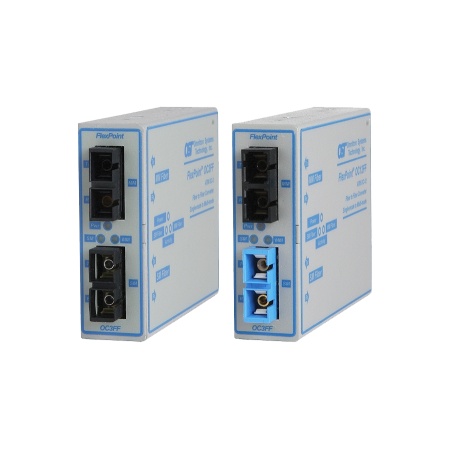

FlexPoint® OC3FF

e2bf3b11df0b872112757f1c2fee6e32 XL
The FlexPoint OC3FF is an OC-3/STM-1 fiber-to-fiber converter/transponder that provides reliable and cost-effective extension of network distances by connecting multimode fiber networks or devices over single-mode fiber cabling. The FlexPoint OC3FF is designed to operate with a constant rate signal ...Read more

Features
  • Support for OC3 over ATM or S1T
  • Constant rate signal from 1Mbps to 155Mbps
  • Plug-and-play requires no manual configuration or software drivers
  • Extends network distances up to 120km
  • Supports MM and SM DF with ST and SC connectors; and SM SF with SC connectors
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

The FlexPoint OC3FF fiber converter can extend the network across single-mode fiber with distances up to 120km. In this application, the customer's router is connected to an Add Drop Multiplexer (ADM) providing access to the SONET ring using a pair of FlexPoint OC3FF fiber converters. The converters provide the multimode to single-mode conversion.



  • Fiber-to-Fiber Converter/Transponder supporting:
    • Multimode dual fiber to single-mode dual fiber
    • Multimode dual fiber to single-mode single-fiber
    • Single-mode dual fiber to single-mode dual fiber
    • Wavelength conversion
  • Support for OC3 over ATM or SONET
  • Module supports a constant rate signal from 1Mbps to 155Mbps
  • Supports multimode and single-mode dual fiber with ST and SC connectors; and single-mode single-fiber with SC connectors
  • Plug-and-play installation requires no manual configuration or software drivers
  • Supports auto-negotiation of duplex mode
  • Extends network distances up to 120km
  • Labeled status LEDs for quick and easy installation
  • Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Peace-of mind reliability backed by a lifetime warranty and free 24/7 technical support

Step 1: Choose a Base Part Number (xxxx-p)

Port
Fiber
Type
Distance
Connector Types
Tx / Rx
Lambda

(nm)
Min. Tx
Power

(dBm)
Max. Tx
Power

(dBm)
Min. Rx
Power

(dBm)
Max. Rx
Power

(dBm)
Min.
Attenuation

(dB)
Link
Budget

(dB)
ST
SC
Port 1
MM/DF
2km
4454-6p
4455-6p
850/850
-10
-4
-24
-3
-
14
Port 2
SM/DF
30km
1310/1310
-15
-8
-31
-8
-
16
Port 1
MM/DF
2km
4456-6p
4457-6p
850/850
-10
-4
-24
-3
-
14
Port 2
SM/DF
60km
1310/1310
-5
0
-31
-3
3
26
Port 1
MM/DF
5km
4450-p
4451-p
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
30km
1310/1310
-15
-8
-31
-8
-
16
Port 1
MM/DF
5km
4452-p
4453-p
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
60km
1310/1310
-5
0
-31
-3
3
26
Port 1
MM/DF
5km
-
4458-p
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
120km
1550/1550
-5
0
-31
-3
3
26
Port 1
SM/DF
30km
-
4459-p
1310/1310
-15
8
-31
-8
3
16
Port 2
SM/DF
120km
1550/1550
-5
0
-31
-3
3
26
Port 1
MM/DF
5km
-
4650-p
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/SF1
20km
1310/1550
-15
-5
-30
-3
-
15
Port 1
MM/DF
5km
-
4651-p
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/SF1
20km
1550/1310
-15
-5
-30
-3
-
15
1When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber
Contact Omnitron for other operational temperature ranges and RoHS (5/6) compliant models

Step 2: Choose a Power Option (xxxx-p)

 -0 = Barrel Connector, No AC/DC Power Adapter
 -1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz
 -2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Operating Temperature

Commercial temperature (0 to 50?C)





  -1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz

Wall Wort PS flexpoint

 -2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Universal PS flexpoint





Accessories

Model NumberDescriptionModel NumberDescription
4380 Wall-Mounting Hardware Kit for Modules 4381 Wall-Mounting Hardware Kit for DC to DC Power Adapter
4384 DC to DC Power Adapter 4384-W DC to DC Power Adapter, Wide Temperature (-40 to 60?C)
4385 14-Module Chassis with two 48VDC Power Supplies 4386 14-Module Chassis with one 48VDC Power Supply
4389 Spare 48VDC Power Supply 4392 5-Module Rack-Mount Shelf
4395 14-Module Chassis with two AC Power Supplies 4396 14-Module Chassis with one AC Power Supply
4399 Spare AC Power Supply 8250 DIN-Rail Mounting Kit
See all FlexPoint accessories on FlexPoint Chassis and Mounting Options product page.

FlexPoint OC3FF (Data Sheet)

FlexPoint OC3FF (User Manuals)

The FlexPoint OC3FF is an OC-3/STM-1 fiber-to-fiber converter/transponder that provides reliable and cost-effective extension of network distances by connecting multimode fiber networks or devices over single-mode fiber cabling.

The FlexPoint OC3FF is designed to operate with a constant rate signal between 1Mbps to 155Mbps allowing the converter to be used in ATM networks as well as other fiber-to-fiber protocol applications.

No manual configuration is required with the plug-and-play FlexPoint OC3FF. Connect the fiber cables to the appropriate interface and the installation is complete.

Depending on the model, the fiber port operates at 850nm, 1310nm or 1550nm and features SC or ST connectors. Multimode fiber models support distances of up to 5km, single-mode fiber models support distances of up to 120km, and single-mode single fiber models support distances up to 20km.

The FlexPoint OC3FF features descriptions of the LED indicators on the label for easy in-the-field installation and maintenance. The LEDs report the availability of power and the detection of devices attached to the fiber ports.

FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.

FlexPoint modules installed in the 5-Module shelf or used as standalone devices can be powered by an external AC to DC power adapter, or through the 5VDC chassis connector. Standalone modules can also be powered by attaching an external DC power supply (18-60VDC). When used in the 14-Module power-redundant Powered Chassis with any combination of AC and DC power supplies, the installed modules are powered via the 5VDC chassis connector.

The wide variety of FlexPoint mounting and power options provide flexible upgrade paths as network requirements change and grow.

FlexPoint unmanaged media converters are easy to use and provide dependable fiber connectivity in Enterprise and Government networks around the world.

Description
 FlexPoint OC3FF
 Fiber-to-Fiber Converter/Transponder
Standard Compliances
 SONET OC-3, SDH STM-1
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
 Supports unlimited frame sizes
Port Types
Fiber:
 OC-3 (ST, SC)
Cable Types
Fiber:
 Multimode: 50/125?m, 62.5/125?m
Single-mode: 9/125?m
AC Power Requirements
AC Adapter:

100 - 240VAC/50 - 60Hz
0.04A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
6.0 to 15.0VDC
9VDC
0.2A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.5A @ 5VDC
Dimensions
W x D x H
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 w/o AC Adapter:
6 oz. (170.1 grams)
Temperature
 Commercial:
Storage: 		    0 to 50?C
-40 to 80? C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 w/o AC Adapter (-0):
w/ AC Adapter (-1):
w/ AC Adapter (-2): 		 2,600,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
