For FlexPoint Media Converter Modules

FlexPoint® Chassis, Power and Mounting Options

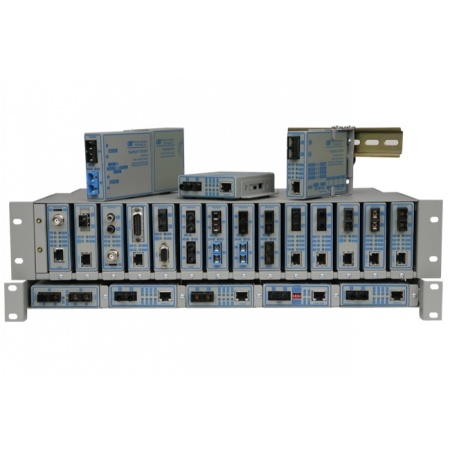

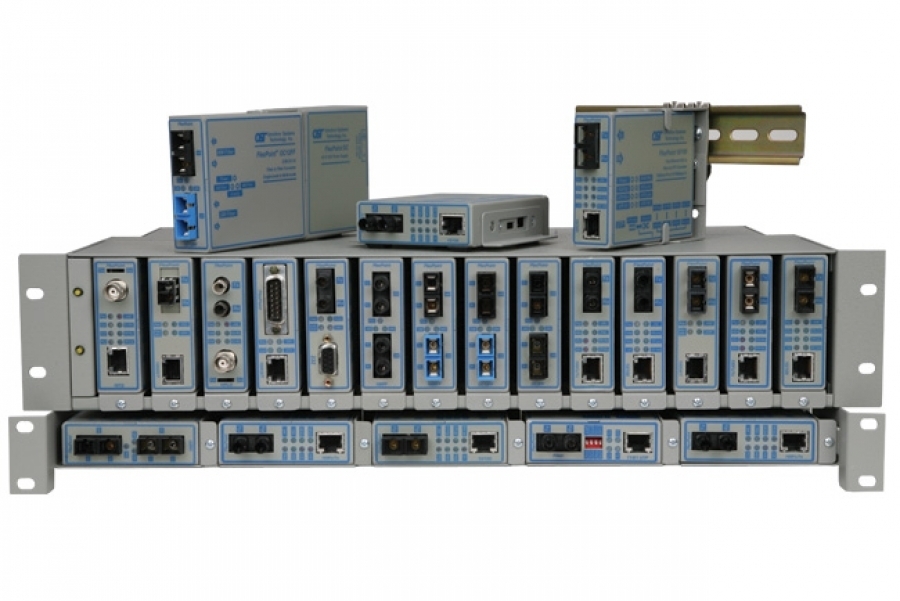

c889234799e865bbe90cee71f6cd2e53 XL
The wide variety of FlexPoint mounting and power configurations provide flexible deployment options, and future upgrade paths as network requirements change and grow. FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack ...Read more

Features
  • Rack-mount 14-Module power-redundant chassis
  • Dual hot-swappable power supplies ensure continuous network operation
  • Supports all FlexPoint media converter modules
  • Converters are individually secured and hot-swappable for maximum connection reliability
  • Supports any combination of protocol-independent media converter modules and mixed media; saves space and makes installation and support easy
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents
  • Rack-mount 14-Module power-redundant chassis
  • Dual hot-swappable power supplies ensure continuous network operation
  • LED displays provide network management with continuous power supply status monitoring
  • Supports any combination of protocol-independent media converter modules and mixed media; saves space and makes installation and support easy
  • Supports all FlexPoint media converter modules
  • Converters are individually secured and hot-swappable for maximum connection reliability
  • Standard 19? rack-mount dimensions allow space-saving and convenient installation
  • Available in AC and DC models
  • Commercial (0 to 50? C) and wide (-40 to 60? C) temperature ranges
  • Plug and play installation with no software drivers
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support

Step 1: Choose a Base Part Number (xxxx-t)

Model NumberDescriptionModel NumberDescription
4385-t 14-Module Chassis with two 48VDC Power Supplies 4386-t 14-Module Chassis with one 48VDC Power Supply
4395-t 14-Module Chassis with two AC Power Supplies 4396-t 14-Module Chassis with one AC Power Supply
4389-t Spare 48VDC Power Supply 4399-t Spare AC Power Supply
4392 FlexPoint 5-Module Rack-Mount Shelf 4380 FlexPoint Wall-Mounting Hardware Kit
4384-t DC to DC Power Adapter 4381 Wall-Mounting Hardware Kit for DC to DC Power Adapter (4384)
Models below do not have a temperature option
4380 Wall-Mounting Hardware Kit for Modules 4381 Wall-Mounting Hardware Kit for DC to DC Power Adapter
4390-1 Single L Shape Mounting Bracket for Chassis or Shelf Mounting 4390-5 Five L Shape Mounting Brackets for Chassis or Shelf Mounting
4392 5-Module Rack-Mount Shelf 8250 DIN-Rail Mounting Kit
Contact Omnitron for other operational temperature ranges and RoHS (5/6) compliant models

See all FlexPoint accessories on FlexPoint Chassis and Mounting Options product page

Step 2: Choose an Operating Temperature Range (xxxx-t)

<leave blank> = Commercial temperature (0 to 50?C)
W = Wide temperature (-40 to 60?C)

FlexPoint 14-Module Chassis (Data Sheet)

FlexPoint AC Powered Chassis (User Manual)

FlexPoint 5-Unit Rack-Mounting Shelf (User Manual)

FlexPoint DC Powered Chassis (User Manual)

FlexPoint Wall-Mounting Kit (User Manual)

FlexPoint DC Converter (User Manual)

FlexPoint DIN Rail Wall Mounting Kit (User Manual)

The wide variety of FlexPoint mounting and power configurations provide flexible deployment options, and future upgrade paths as network requirements change and grow.

FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis

FlexPoint modules installed in the 5-Module shelf or used as standalone devices can be powered by an external AC to DC power adapter, or through the 5VDC chassis connector. Standalone modules can also be powered by attaching an external DC power supply (18-60VDC).

FlexPoint 14-Module Power-Redundant Powered Chassis

The FlexPoint Powered Chassis is a 19? rack-mount chassis that houses up to 14 standalone FlexPoint media converter modules. The redundant power supplies are essential where reliability is important, and in mission-critical applications to ensure continuous operation.

Both of the universal AC or DC power supplies are hot-swappable and can be used in any combination. In case of a failure, a power supply can be hot-replaced while the second power supply supports the operation of the chassis.

The power control logic of the Powered Chassis provides load-sharing between the power supplies, increasing reliability and operational lifetime. The control logic provides power monitoring and an LED display for each supply in order to assist in status monitoring, rapid fault-isolation and network management.

The 14-Module Powered Chassis supports any combination of FlexPoint media converter modules which are individually secured and hot-swappable to ensure continuous operation.

FlexPoint 5-Module Rack-Mounting Shelf

The rack-mounting shelf holds up to five standalone FlexPoint media converter modules. Each converter is individually powered in order to provide a low-cost solution in a compact installation space.


FlexPoint DC Power Adapter

4384 new flex 14

Designed for telecommunications and IT applications such as campuses and phone centers that use DC power as a primary power source, the FlexPoint DC Converter allows any FlexPoint media converter to be powered from an 18 to 60VDC power source. Not for use in the FlexPoint 5-Module Rack-Mount Shelf.


FlexPoint Wall-Mounting Kit

8250 wall flex 14

When individual mounting is required, the wall-mounting kit provides a convenient way to secure a FlexPoint converter to a wall or a side of a desk. The mounting hardware is easy to use and flexible in a variety of installation applications.


DIN Rail Mounting Options

DIN Rail FlexPoint

The Universal DIN Rail Mounting Bracket and the DIN Rail Mounting Clip provides DIN Rail capabilities for a variety of Omnitron products.

14-Module Power-Redundant Chassis
Description
14-Module AC
14-Module DC
Model Number
4395
4385
Module Capacity
14
Power Supply Capacity
1 - 2 Power Supplies
Regulatory Compliances

Safety: UL, cUL, CE, UKCA

EMI: FCC Class A

ACT: TAA, BAA, NDAA
Environmental

RoHS, WEEE, REACH
Power Requirements
(typical)
100 to 240 VAC,
50-60 Hz
1.5A @ 110VAC
IEC 320 C14
38 to 60VDC
3.0A @ 48VDC

3-Pin Terminal (Isolated)
Dimensions
W x D x H
19.0" x 9.5" x 3.5" (482.6 mm x 241.3 mm x 88.9 mm)
Weight 6 lbs. (2.72 kg.)
Temperature

Commercial:
Wide:
Storage:

0 to 50?C
N/A
-40 to 80?C

0 to 50?C
-40 to 60?C (-25? C cold start)
-40 to 80?C
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
1 Power Supply:
2 Power Supplies:
43,000
172,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support



DC to DC Power Adapter
Description
DC Adapter
Model Number
4384
Module Capacity
1
Regulatory Compliances

Safety: UL, cUL, CE, UKCA

EMI: FCC Class A

ACT: TAA, BAA, NDAA
Environmental

RoHS, WEEE, REACH
Power Requirements
(typical)
18 to 60VDC
0.3A @ 48VDC
3 Pin Terminal Connector (Isolated)
Dimensions
W x D x H		 3.1" x 4.3" x 1.0" (78.7 mm x 109.2 mm x 25.4 mm)
Weight 6 oz. (170.1 grams)
Temperature

Commercial:
Wide:
Storage:

0 to 50?C
-40 to 60?C (-25? C cold start)
-40 to 80?C
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
300,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support



5-Module Rack-Mounting Shelf
Description
5-Module Shelf
Model Number
4392
Module Capacity
5
Dimensions
W x D x H		 19.0" x 5.0" x 1.75" (482.6 mm x 127 mm x 44.5 mm)
Weight 2 lbs. (0.91 kg.)
Warranty
Lifetime warranty with 24/7/365 free Technical Support
