Single Pair Ethernet (SPE) is reshaping how industries manage communication networks. Designed to offer high-speed and reliable communication over a single pair of wires, SPE is now the backbone of many industrial, automotive, and IoT systems. The choice of connector plays a crucial role in the performance and scalability of these networks. Two connectors commonly used in Single Pair Ethernet are the 3-Pin Terminal and the IEC 63171-2 connector.
Choosing the right connector is essential for your network's efficiency and long-term viability. This article delves into the pros and cons of both connector types, giving you the necessary information to make an informed decision for your next project.
Single Pair Ethernet (SPE) is a communication technology that provides Ethernet services over a single twisted pair of copper cables, SPE enables data transmission over greater distances compared to traditional Ethernet cables, while maintaining reliability and ease of deployment.
Unlike standard Ethernet, which requires bulky cables with multiple wire pairs, Single Pair Ethernet offers a lightweight, compact solution, ensuring efficiency in industrial settings, automated vehicles, and IoT applications. Some of the primary benefits of SPE include:
Given its unique characteristics, Single Pair Ethernet is quickly gaining popularity in various sectors, including industrial automation, smart buildings, and automotive applications.
Read more: Top 5 Use Cases of Single Pair Ethernet in Industrial Applications
Connectors are integral to any network's performance, providing a secure link between cables and devices. For Single Pair Ethernet networks, the type of connector you choose directly affects data transfer rates, installation efficiency, and reliability.
In particular, the 3-Pin Terminal and IEC 63171-2 connectors are two prominent choices for SPE installations. These connectors are designed to withstand varying environmental conditions, offer ease of use, and support different data speeds. Let’s break down the features, benefits, and potential drawbacks of both types of connectors.

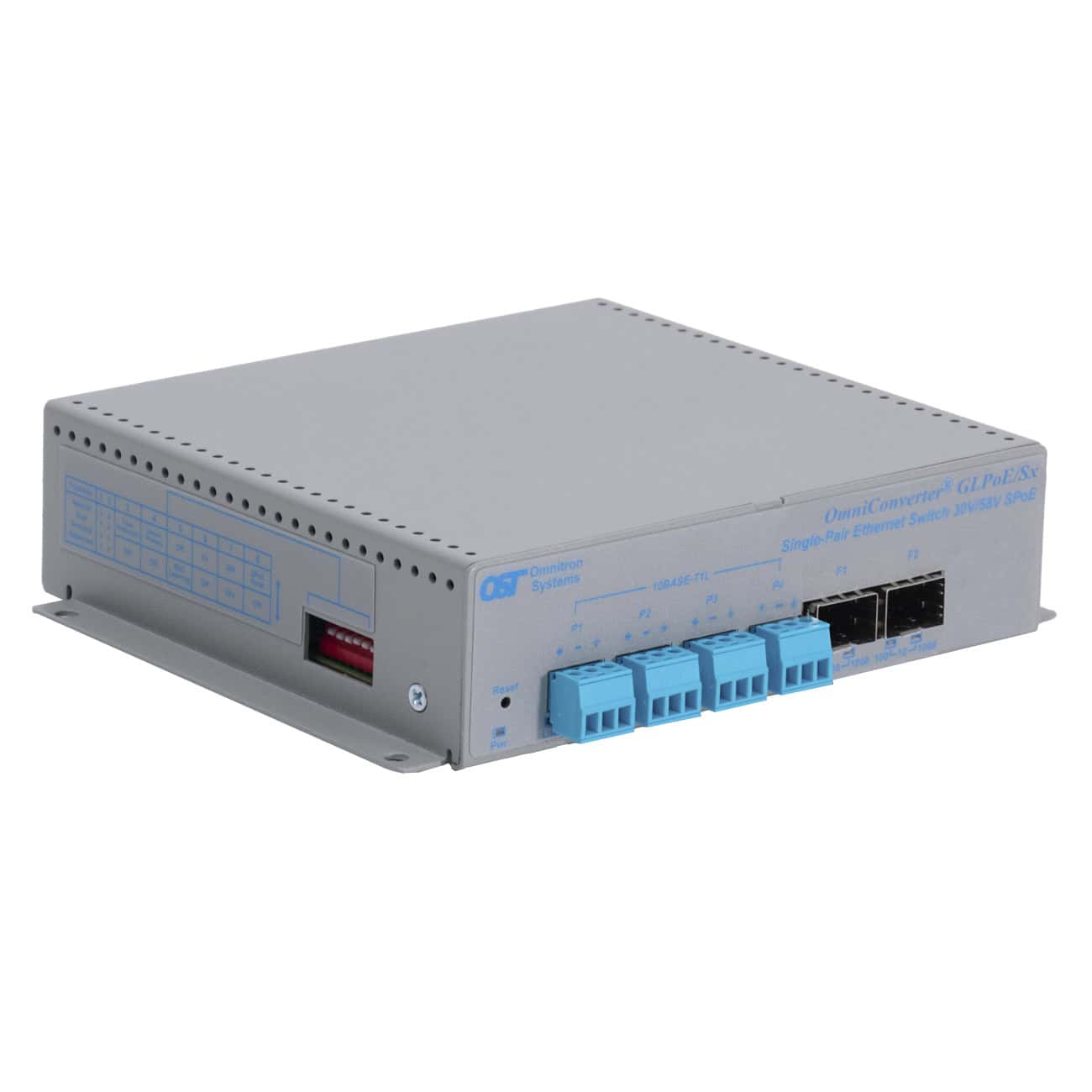

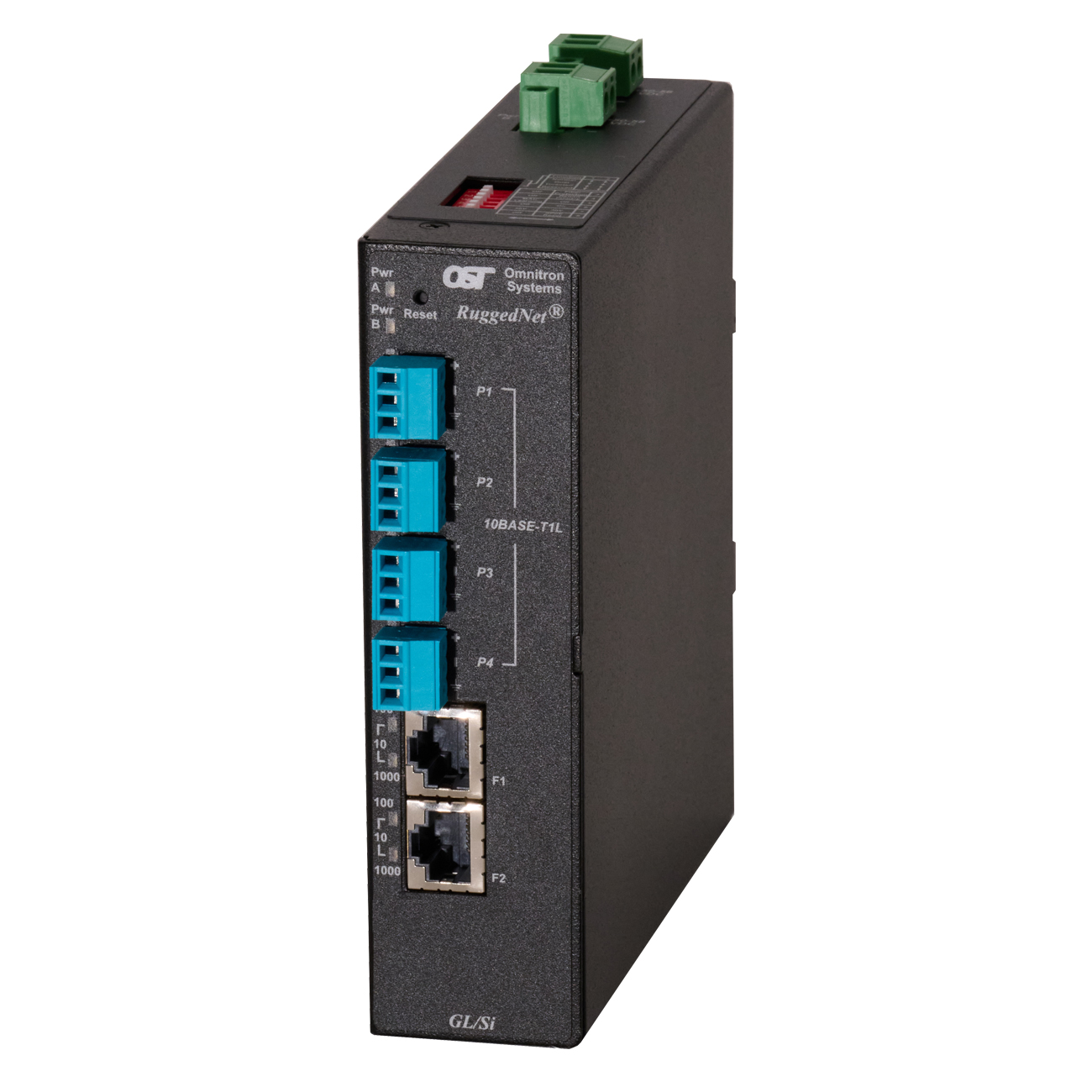

The 3-Pin Terminal Connector is one of the most common types of connectors used for Single Pair Ethernet cables. It’s a compact, cost-effective solution that connects Ethernet cables to devices, making it suitable for a range of industrial and commercial applications.
The IEC 63171-2 connector is a newer, high-performance connector designed specifically for Single Pair Ethernet networks. It is recognized as a global standard for SPE connectivity and is engineered to handle higher data speeds and greater environmental resistance compared to the 3-Pin Terminal.
Here’s a direct comparison of both connectors based on important criteria:
Why it matters for 10BASE-T1L / SPoE:
For the full 1000 m T1L reach and higher PoDL/SPoE power classes, industry guidance points to 18/16 AWG cabling—sizes that 63171-2 connectors often don’t accommodate, while 3-pin terminals do.
| Feature | 3-Pin Terminal Connector | IEC 63171-2 Connector |
|---|---|---|
|
Data Transfer Speed |
Up to 100 Mbps |
Up to 1 Gbps or higher |
|
Ease of Installation |
Simple, no special tools required |
Requires specialized tools and expertise |
|
Durability |
Good for industrial environments |
Superior durability, resistant to harsh conditions |
|
Environmental Resistance |
Basic protection, not ideal for extreme conditions |
Enhanced sealing, suitable for harsh environments |
|
Application |
Ideal for low-speed, simple industrial setups |
Best for high-performance, advanced networks |
|
Data Integrity |
Adequate for shorter distances |
High data integrity over longer distances |
|
Scalability |
Limited scalability for future-proofing |
Highly scalable for future-proof networks |
|
Typical Use Cases |
Industrial automation, IoT networks |
Automotive Ethernet, Smart Grids, Industrial IoT |
Both the 3-Pin Terminal and IEC 63171-2 connectors have their ideal applications. Let's explore some of their primary uses:
As Single Pair Ethernet (SPE) continues to gain traction in various industries, it’s important to consider the longevity and scalability of your network’s infrastructure. Both the 3-Pin Terminal and the IEC 63171-2 connectors have their place, but when it comes to future-proofing, the IEC 63171-2 connector stands out. It is built to support higher data rates (1 Gbps and beyond) and offers superior durability, which makes it an ideal choice for future-proofing your network.
As industrial automation and IoT applications evolve, the demand for faster speeds, higher bandwidth, and greater connectivity will only increase. The IEC 63171-2 connector, designed with these advancements in mind, provides a more flexible solution for networks that need to adapt to emerging technologies such as 5G, AI, and machine learning integration. On the other hand, the 3-Pin Terminal connector may be better suited for smaller, simpler applications with fewer long-term data demands.
In the age of Industry 4.0, connectivity is the key to unlocking smarter, more efficient industrial operations. Single Pair Ethernet (SPE) connectors, such as the 3-Pin Terminal and IEC 63171-2, play a crucial role in facilitating this transformation. These connectors enable seamless communication between smart machines, sensors, controllers, and other devices that are the backbone of connected factories.
The IEC 63171-2 connector, with its high-speed capabilities, is particularly well-suited for handling the demands of Industrial IoT (IIoT), enabling devices to exchange data in real-time, thus improving efficiency and reducing downtime. By supporting Ethernet-based communication over a single twisted pair, these connectors ensure reliable, cost-effective networking in environments where space, power, and bandwidth efficiency are critical. The evolution of connectors will continue to be a foundational element as we progress toward smart manufacturing, predictive maintenance, and fully integrated automation systems.
Choosing the right connector for your Single Pair Ethernet (SPE) network depends largely on the specific requirements of your application. If you are working in an environment where cost-efficiency and ease of installation are the top priorities, the 3-Pin Terminal connector may be the best fit. It is ideal for simpler setups with moderate data needs, where high speeds are not critical. However, if your application demands higher data transfer speeds, longer distance connectivity, or the ability to support future network expansion, the IEC 63171-2 connector should be your go-to choice.
It offers superior signal integrity and performance in high-bandwidth environments, making it suitable for more advanced automated systems, smart buildings, and IoT networks. When selecting a connector, you should also consider factors such as environmental resistance, installation complexity, and long-term scalability, ensuring the chosen connector meets both your current needs and future growth.
The IEC 63171-2 connector is built to meet stringent international standards that ensure its compatibility, reliability, and performance across different applications. It adheres to the IEC 63171 family of standards, which governs the physical and electrical characteristics of connectors used for Single Pair Ethernet.
These certification standards guarantee that the IEC 63171-2 connectors deliver high-speed transmission, low signal loss, and robust environmental protection. Compliance with these standards also ensures that the connectors can be deployed globally in a variety of industries and networking environments, from automotive systems to industrial automation. For businesses looking to implement certified, reliable solutions, these connectors offer peace of mind that they will perform to international expectations. Moreover, these standards help businesses meet regulatory requirements and provide assurance that the connectors will continue to deliver optimal performance as networking demands evolve.
The 3-Pin Terminal connector is simpler and more affordable, making it ideal for low-speed applications. The IEC 63171-2 connector supports higher speeds and is designed for high-performance and longer distances.
The 3-Pin Terminal connector is more cost-effective, making it the preferred choice for budget-conscious projects or where lower speeds are sufficient.
If you require high-speed data transfer for industrial automation, the IEC 63171-2 connector is better suited for those needs. However, if your application is more basic, the 3-Pin Terminal is an affordable choice.
Generally, the 3-Pin Terminal connector supports data rates up to 100 Mbps. For Gigabit Ethernet speeds, the IEC 63171-2 connector is the better choice.
The IEC 63171-2 connector is ideal for harsh environments such as automotive networks, industrial IoT, and smart grids due to its high durability and environmental resistance.
Selecting the right connector for your Single Pair Ethernet network is crucial to ensure efficient data transmission, reliability, and scalability. The 3-Pin Terminal connector offers a cost-effective, simple solution for basic applications, while the IEC 63171-2 connector excels in high-performance environments, offering superior speed and durability.
At Omnitron Systems, we specialize in providing high-quality, reliable connectors for Single Pair Ethernet networks, ensuring your infrastructure is built for the present and the future. Whether you choose the 3-Pin Terminal for cost-effective installations or the IEC 63171-2 for high-demand, high-speed applications, we have the solutions to meet your needs.
