The OmniConverter Single-Pair Ethernet converters are IEEE 802.3cg compliant products that convert 10BASE-T Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km. The Single Pair Ethernet converters feature one IEEE 8 ...Read more

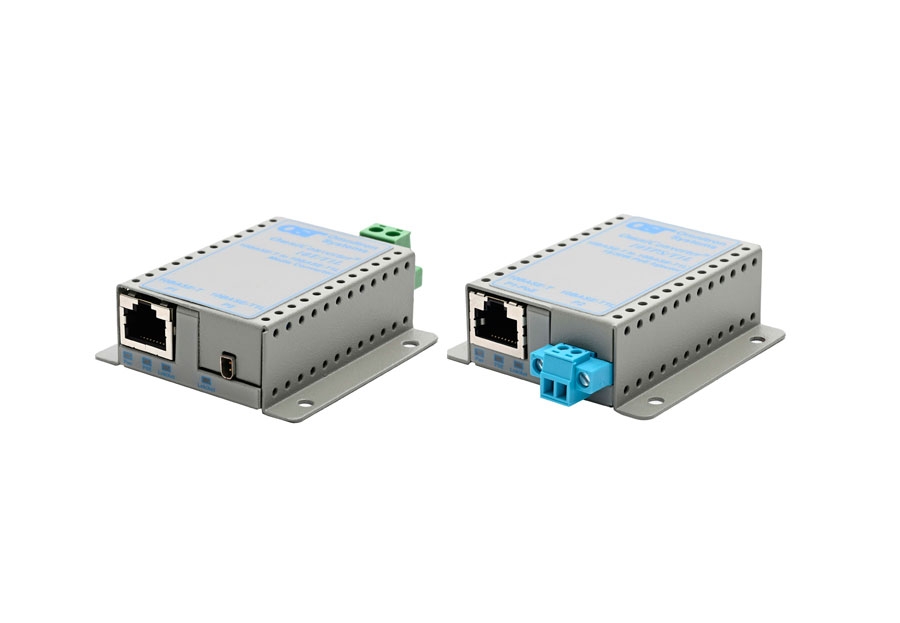

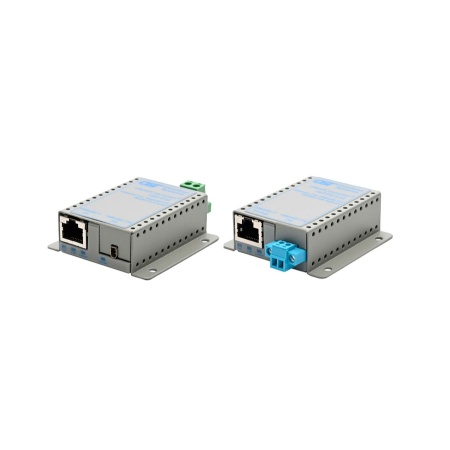

OmniConverter® Single Pair Ethernet



Part Number: OmniConverter_Single_Pair_Ethernet




  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

Building Automation Application

This example shows an OmniConverter 10T/T1L extending a 10Mbps Ethernet data connection from a Building Automation Controller over a single-pair Ethernet cable to a Remote Controller. The Remote Controller is gathering data from building sensors and meters.



10T T1L Building Auto App



Extend Ethernet up to 1000 meters

This example shows an OmniConverter 10T/T1L extending a 100 meter 10Mbps Ethernet data connection across a single-pair Ethernet cable to another OmniConverter 10T/T1L. The total distance extension is up to 1200 meters.

10T T1L Camera App



Extend Ethernet up to 1000 meters and Inject up to 30W PoE+

This example shows an OmniConverter 10T/T1L extending a 10Mbps Ethernet data connection across a SPE cable to a 10TPS/T1L powering an 802.3at PoE camera.

10T T1L PoE App

  • Ultra compact unmanaged 10BASE-T to 10BASE-T1L single-pair Ethernet media converter
  • IEEE 802.3cg single-pair Ethernet on 2-Pin Terminal or IEC 63171-2 SPE connector
  • 10TPS/T1L supports IEEE 802.3at on RJ-45 port
  • Plug-and-Play installation
  • AC to DC Power Adapter or 2-Pin DC terminal
  • DIN-rail mount with optional brackets
  • Commercial (0 to +50ºC), wide (-40 to +60ºC) and extended (-40 to +75ºC) operating temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Free 24/7/365 Technical Support with lifetime warranty

OmniConverter Single-Pair Ethernet (User Manual)

OmniConverter Single-Pair Ethernet (Data Sheet)

SPoE Cable Distance (Application Note)

The OmniConverter Single-Pair Ethernet converters are IEEE 802.3cg compliant products that convert 10BASE-T Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km.

The Single Pair Ethernet converters feature one IEEE 802.3cg compliant 10BASE-T1L terminal or IEC 63171 SPE port and one 10BASE-T RJ-45 port supporting 10Mbps fullduplex data rates.

The 10T/T1L is a 10BASE-T RJ-45 Ethernet to single-pair 10BASE-T1L Ethernet converter.

The 10TPS/T1L is an 10BASE-T IEEE 802.3at (PoE+) RJ-45 Ethernet to single-pair 10BASE-T1L Ethernet converter.

The Single-Pair Ethernet converters achieve seamless Ethernet connectivity to IEEE 802.3cg compliant devices, such as field transmitters, building controllers or cameras.

The modules are plug-and-play devices that support 10Mbps data rates and full duplex for simple in-line installation to instantly extend network distances for industrial and in-building automation applications.

They are available as a standalone unit with or without integrated mounting brackets. It can be DIN-rail mounted using the optional DIN-rail mounting clip kit (8252-0). Models are available with an external 100 to 240VAC power adapter or with a 2-Pin DC terminal connector.

STANDARDS AND COMPLIANCES

Regulatory Compliances (Pending)
Safety:

UL 62368-1, UL 60950-1,

IEC 62368-1, IEC 60950-1,

CAN/CSA C22.2 No. 60950-1,

EN 60950-1:2006

CE Mark,

UKCA
EMI:

FCC 47CFR, Part 15 Class A

AS/NZS 3548, AS/NZS 4417.1 and AS/NZS 4417.2

ICES-003 Issue 3

EN 55032/CISPR 22 and EN55035

EN61000-3-2

VCCI V3/2001.04 (CISPR 22A:1997, Class A)
EMC:

IEC/EN61000-4-2, IEC/EN61000-4-3

IEC/EN61000-4-4, IEC/EN61000-4-5

IEC/EN61000-4-6, IEC/EN61000-4-8

IEC/EN61000-4-11
ACT: TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH





SPECIFICATIONS

Description

OmniConverter 10T/T1L

10BASE-T RJ-45 to 10BASE-T1L 2-Pin Terminal

OmniConverter 10TPS/T1L

10BASE-T PoE+ RJ-45 to 10BASE-T1L 2-Pin Terminal
Standard Compliances

IEEE 802.3, IEEE 802.3cg
Frame Size Up to 1518 bytes
Port Types

10BASE-T: RJ-45

10BASE-T1L: 2-Pin Terminal or IEC 63171-2 SPE connector
Cable Types Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

              Single-Pair Ethernet (SPE) cable
AC Power Requirements

100 - 240VAC/50 - 60Hz, 0.6A @ 120VAC

2.1mm Barrel

100 - 240VAC/50 - 60Hz, 1.5A @ 120VAC

2.1mm Barrel
DC Power Requirements

+9 to +24VDC; 0.034A @ 12VDC

2 Pin Terminal (isolated)

+44 to +57VDC; 0.56A @ 56VDC

2 Pin Terminal (isolated)

Dimensions

W x D x H

w/o Bracket: 1.75” x 2.50” x 0.84” (44.5 mm x 63.5 mm x 21.3 mm)

w/ Bracket:   2.10” x 2.50” x 0.84” (53.3 mm x 63.5 mm x 21.3 mm)
Weight

Module Only: 2.5 oz. (70.9 grams)

w/ AC/DC Adapter: 12 oz. (340.2 grams)

Module Only: 2.5 oz. (70.9 grams)

w/ AC/DC Adapter: 12 oz. (340.2 grams)
Operating Temperature
(See Temperature Derating Table)

Commercial: 0 to 50°C

Wide: -40 to 60°C

Extended: -40 to 75°C

Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs)

Module Only: 2,481,000

AC/DC Adapter: 100,000

Module Only: 2,160,000

AC/DC Adapter: 100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support
